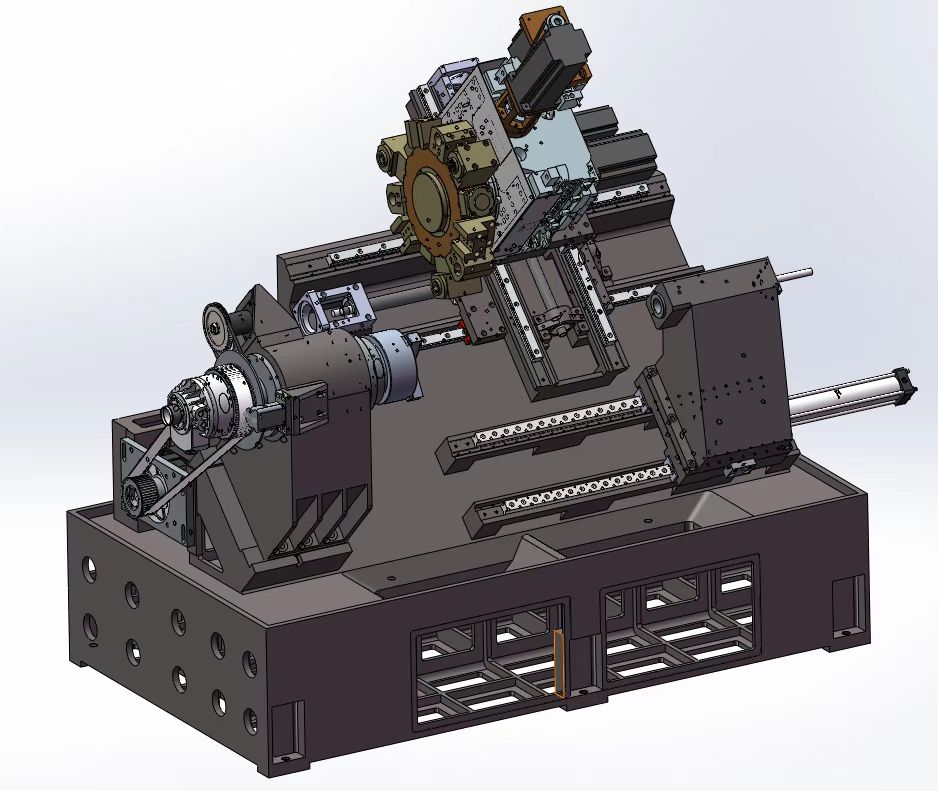

slant bed cnc lathe machine casting

Free Instant Quote within 8 Hours

25+ Years in Lathes Manufacturing Online

Factory Direct Lathe Price & CE And SGS Quality Assurance

10000+Machine Tool Delivered

3000+ Happy Partners



GET A QUICK REQUESTS

Contact Form Demo (#3)

TCK750 Slant bed CNC lathes, also known as inclined bed CNC lathes, are a popular type of CNC machine tool that features a slanted bed for supporting the workpiece and cutting tool. This design offers several advantages and characteristics that make it ideal for a variety of machining applications.

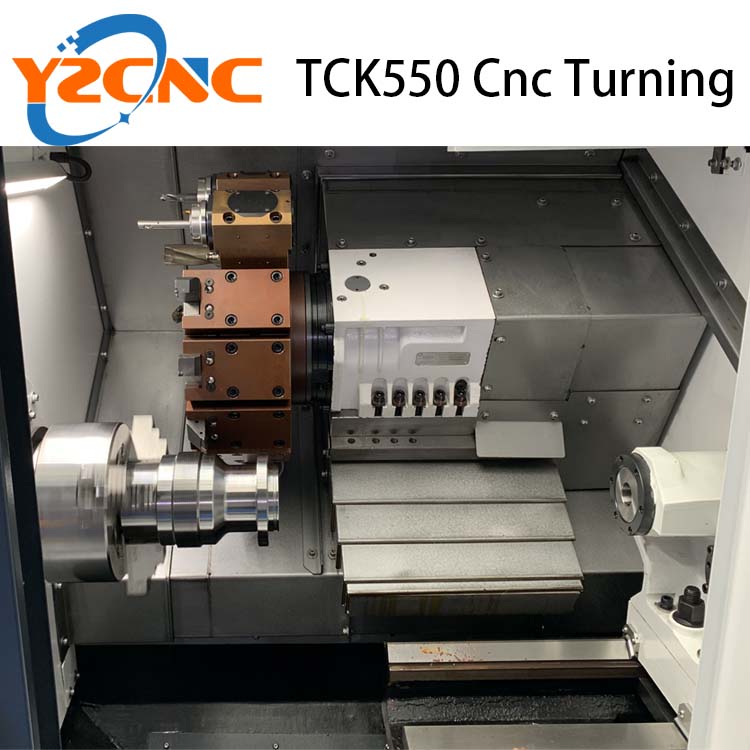

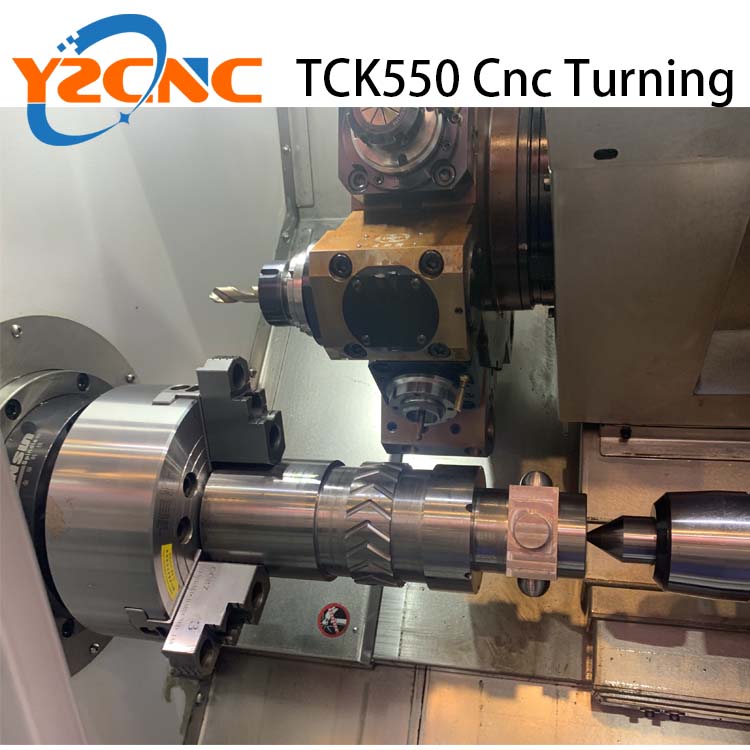

cnc lathe

TCK750 Slant Bed Cnc Lathe Specification

ITM UNITTCK750  (45degree)
Work RangeMax. swing dia. over bedmm750
Max. swing dia. over slideMm400
Max. cutting dia. Of disc type partsmm680
Max. cutting dia. Of axle type partsmm400
Distance between centersmm550
X/Z/Y  AxisX axis travelmm400
Z axis travelmm550
Y axismm±50
X Z Fast feedmm20000
SpindleSpindle boremm66(A2-6)/86(A2-8)
Max through hole bar diametermm50(A2-6)/75(A2-8)
spindle nose typeA2-6/A2-8
spindle speedrpm3500
Main motor power (C AXIS)kw7.5KW  Servo
accuracyX Z axis positioning accuracymm0.012
X Z repeatabilitymm0.003
Diameter uniformitymm0.03/300
Flatnessmm0.03/300
Number Turret12 servo power turret/12 hydraulic servo turret
power turretturret typeBMT45/BMT55 Y AXIS
Outer diameter Shank diameter20X20/25X25
Inner shank diameter32
Driven toolingEnd face driven toolER25/3000RPM
Side face driven toolER25/3000RPM
ChuckmmHydraulic Chuck 10 inch
Machine sizemm2850×1900×1960
Machine weightT4.2



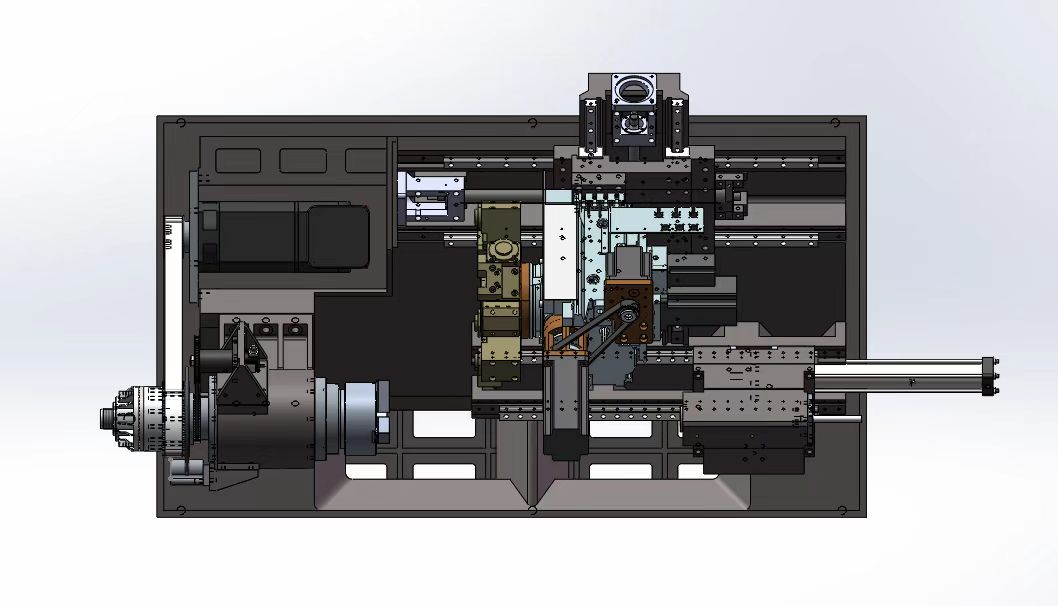

Improved Rigidity and Stability

The slanted bed design of a CNC lathe improves the rigidity and stability of the machine. The angled bed helps to distribute the weight of the workpiece and cutting forces more evenly across the bed, reducing vibrations and ensuring accurate cutting. The slanted bed also provides better support for the carriage and cutting tool, resulting in improved precision and surface finish.



Better Chip Disposal

The slanted bed design of a CNC lathe also allows for better chip disposal. The chips generated during cutting are directed away from the cutting area and toward the chip conveyor, which makes cleaning and maintenance easier. This can improve the efficiency and productivity of the machine, as well as the safety of the operator.



Improved Accessibility

The slanted bed design of a CNC lathe also improves accessibility to the cutting area. The angled bed allows for better visibility and easier access to the cutting tool, workpiece, and chuck. This makes it easier to set up and adjust the machine, as well as monitor the cutting process.



Better Thermal Stability

The slanted bed design of a CNC lathe also offers better thermal stability. The angled bed helps to dissipate heat generated during cutting, which reduces thermal deformation and ensures dimensional accuracy. This can improve the quality and precision of the machined parts.



Reduced Floor Space Requirements

The slanted bed design of a CNC lathe also allows for reduced floor space requirements. The compact design of the machine takes up less floor space compared to other types of CNC lathes, which can be beneficial for smaller machine shops or those with limited floor space.



Increased Flexibility

The slanted bed design of a CNC lathe also provides increased flexibility for machining different types of parts. The angled bed can accommodate larger workpieces with a smaller footprint, and can also provide better access to certain areas of the part that may be difficult to reach with a horizontal bed lathe.



Improved Ergonomics

Finally, the slanted bed design of a CNC lathe can improve ergonomics for the operator. The angled bed can be positioned at a more comfortable working height, reducing strain and fatigue on the operator. Additionally, the improved accessibility and chip disposal can also reduce the risk of injury or strain.



In summary, the slant bed CNC lathe offers several advantages and characteristics that make it a popular choice for a variety of machining applications. Its improved rigidity and stability, better chip disposal, improved accessibility, better thermal stability, reduced floor space requirements, increased flexibility, and improved ergonomics make it an attractive option for many machine shops.
