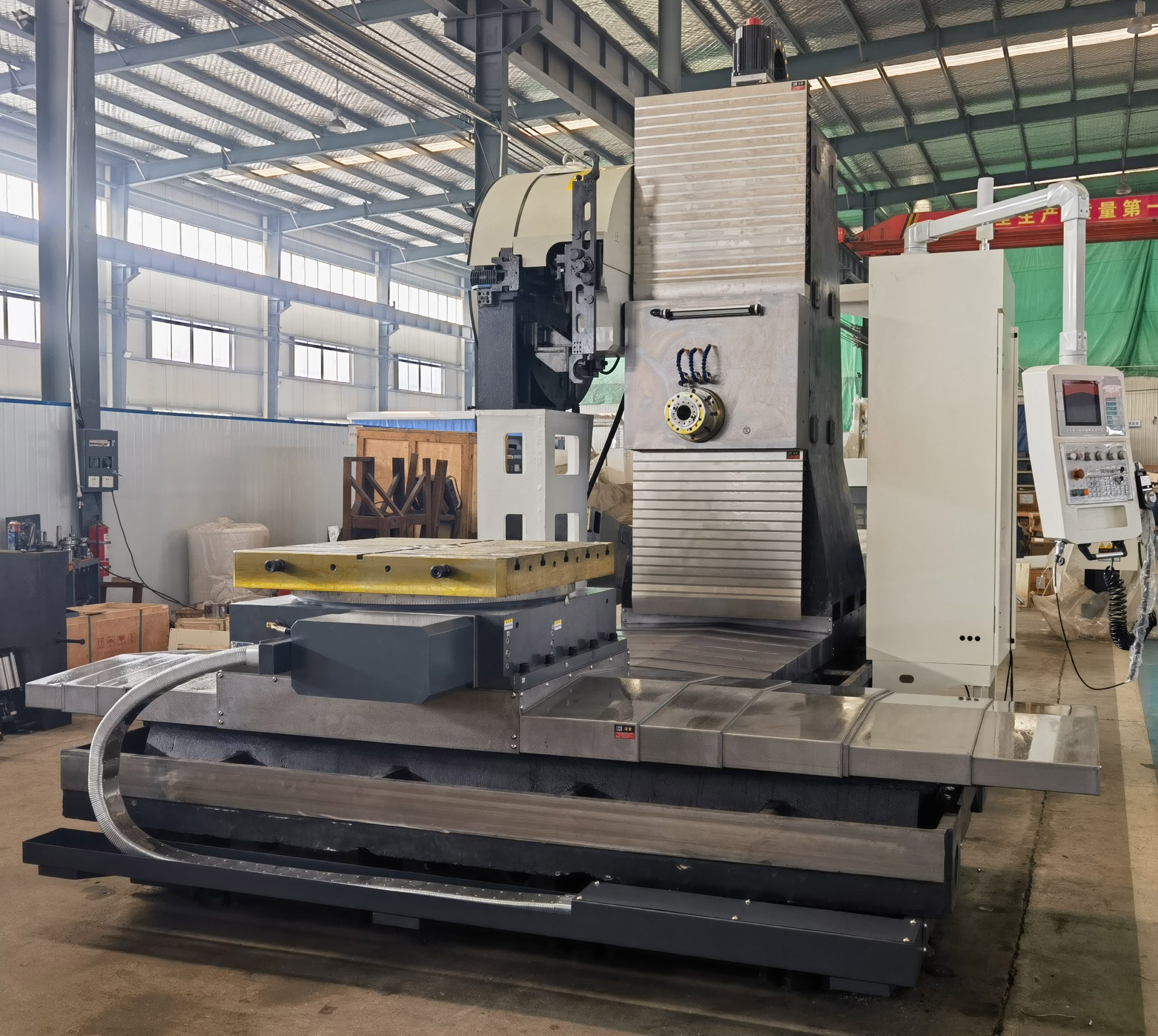

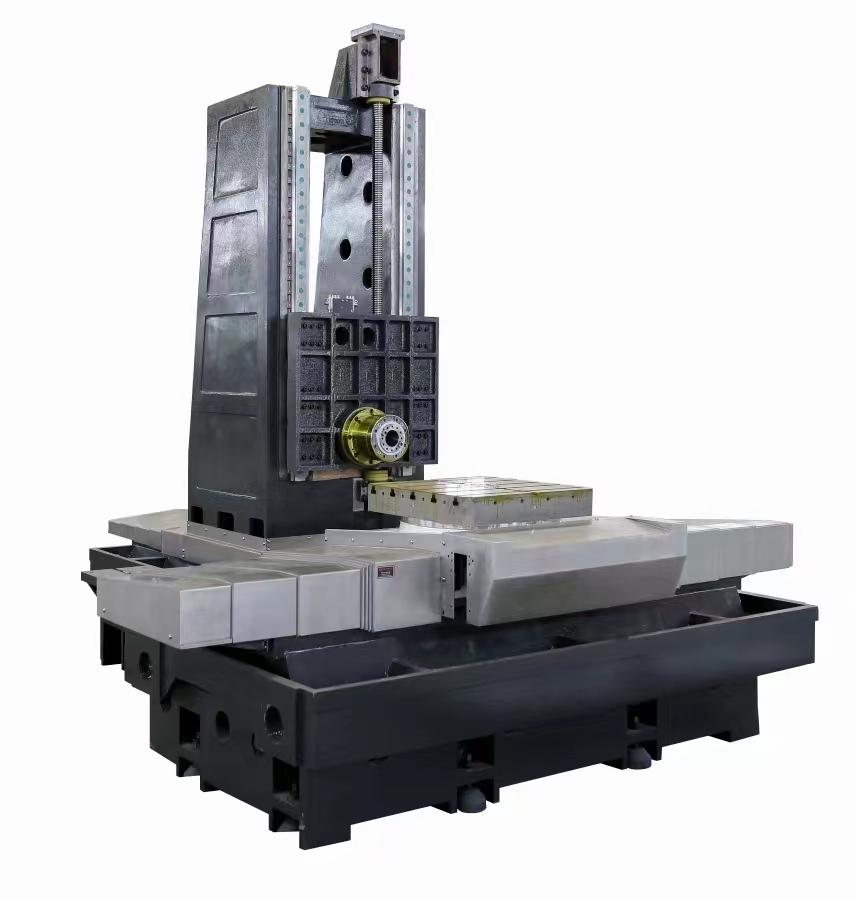

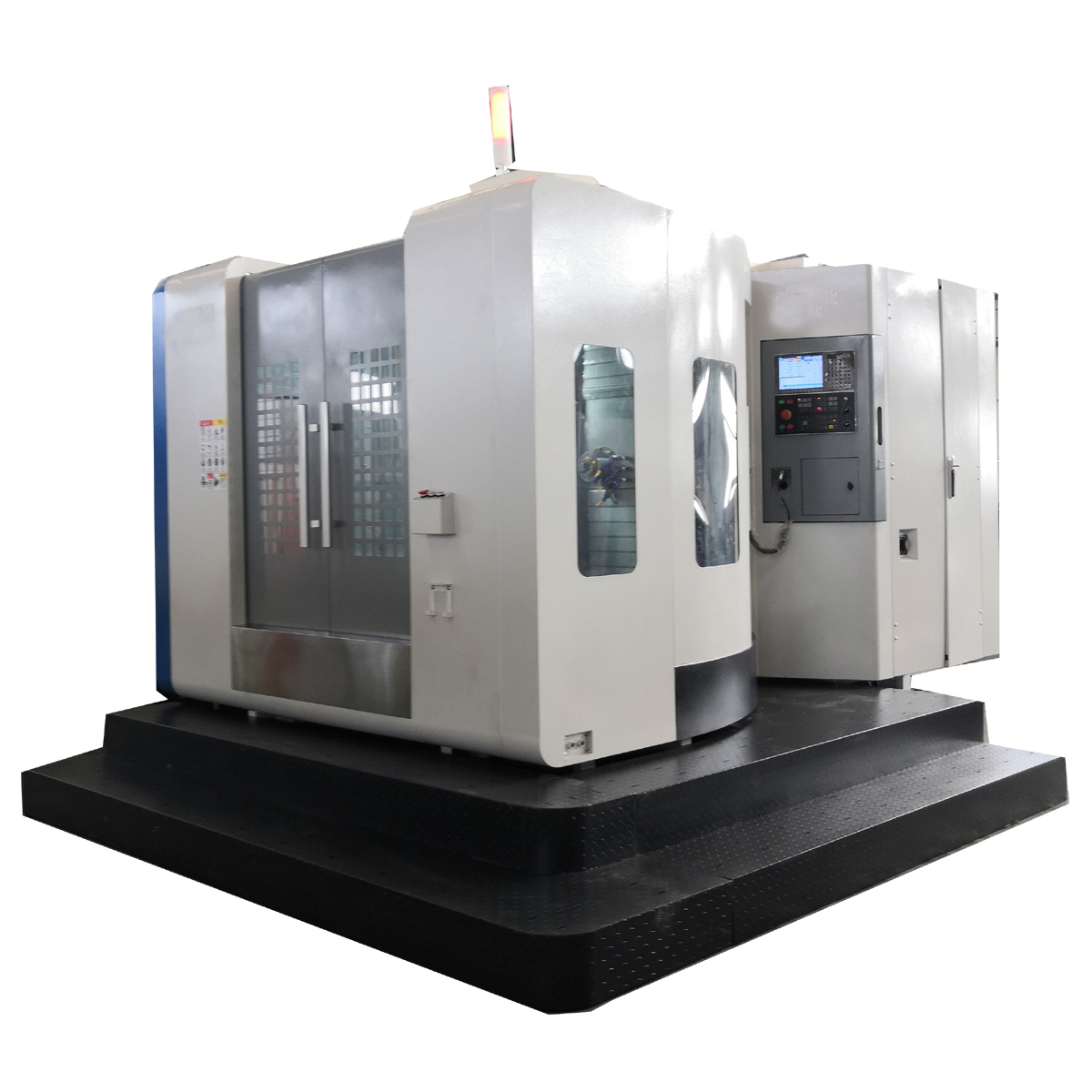

HCN630 Horizontal Machining Centers

Model	HCN-50	HCN-63	HCN-80
Travel
X- AXIS	800mm	1100mm	1300mm
）Y-axis	650mm	800mm	900mm
Z-axis	800mm	900mm	1100mm
Spindle nose to table center	150-950mm	145-1045mm	255-1355mm
Spindle center to table surface	100-750mm	20-820mm	30-930mm
Feed
X Axis fast travel	24m/min	24m/min	20m/min
Y Axis fast travel	20m/min	20m/min	20m/min
ZAxis fast travel	20m/min	20m/min	20m/min
Cutting feed	1-10m/min	1-10m/min	1-10m/min
3 axis Lead screw	4012/5012/4012	5012/5012/5012	5012/5012/5012
Three-axis linear rail (roller)	45 /45 /45	45/45/45（Y六滑块）	55/55/55（YZ六滑块）
Three axis servo motor torque（ synter	15/28B/28 N.m	18/28B/28 N.m	28/35B/35 N.m
Three axis servo motor torque	βiS30/30B/30	βiS30/30B/30	βiS40/40B/40
Turntable servo motor torque	15N.m	18N.m	28N.m
Turntable servo motor torque	βiS12	βiS22	βiS30
Table
Table size	500×500mm	630×630mm	800×800mm
Max.loading	600Kg	1500Kg	2500Kg
Minimum segmentation accuracy	一度一分/千分之一度
T-slot size	5×18×100mm	5×18×125mm	5×22×160mm
Spindle
	BT40-150	BT50-150	BT50-190
Speed	8000 rpm	6000 rpm	6000 rpm
Spindle Taper	BT40	BT50	BT50
Spindle motor power	11KW	15KW	23KW广域马达
Spindle motor power	βil12/10000	βil15/8000	βilP30/6000
Accuracy
Positioning accuracy (JIS standard)	±0.005/300mm	±0.005/300mm	±0.005/300mm
Repeat positioning accuracy (JIS standard)	±0.004mm	±0.004mm	±0.005mm
other
weight	9000Kg	11000Kg	14500Kg
Machine size	3340×4480×2700mm	3600×4680×2800mm	4400×5400×3500mm
