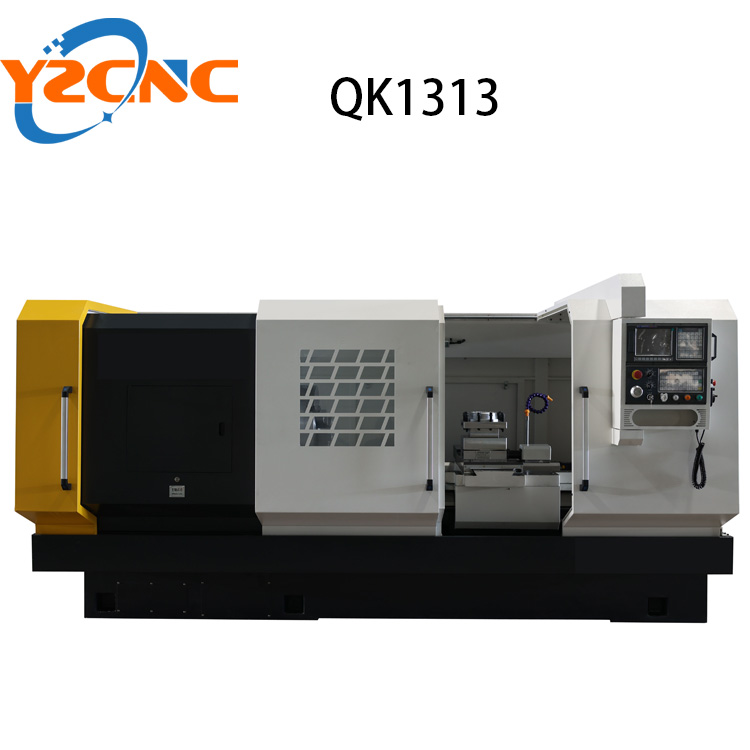

QK1313 CNC Pipe Threading Lathe

QK1313 CNC Pipe Threading Lathe Standard Accessories

1. GSK controller

2. NC Turret 4 Tools

3. Automatic Lubrication

Optional

Siemens /FANUC/ KND

6/8 Turret

Other Model: QK1319 QK1322 CNC Pipe threading lathe



GET A QUICK REQUESTS

Contact Form Demo (#3)

QK1313 Cnc pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module, DP, and taper threads, as well as having all the common functions of a normal cnc lathe such as processing the inner bore and end face of shafts and disks. this series lathe machine is widely used in industries including petroleum exploitation, minerals mining, chemical piping, and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipes, drilling rods, thread coupling, and so on.

QK1313 CNC Pipe Threading Lathe  Features

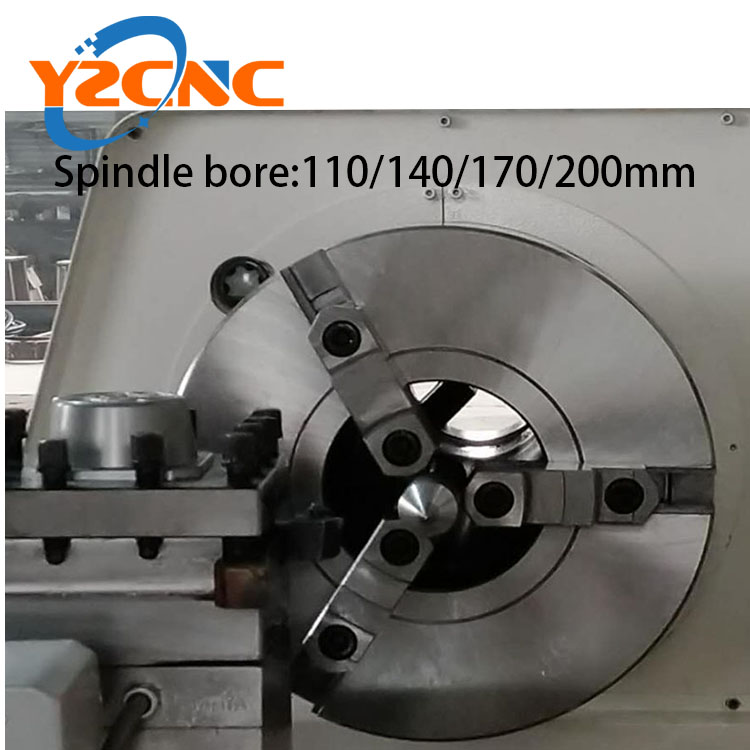

1. Big spindle bore and double chuck to ensure the process of big diameter pipe

2. One-piece bed adopts high-strength iron to ensure rigidity and precision

3. Ultrasonic frequency quenched guide-ways ensure good wear-resistance

4. Carriage and guideway contact surface use Turcite B to maintain accuracy.

QK1313 CNC Pipe Threading Lathe Specification



SpecificationUNITQK1313
CapacitySwing over bedmm630
Swing over cross slidemm340
Distance between centersmm1000/1500/3000
Processing thread dia.rangemm30-126
Guideway widthmm400/550
Max.loadT2/3
SpindleSpindle boremm130mm
Spindle speed type2 Steps
Spindle speed rangerpm30-800
Chuck modelmmK11-380 three jaw chuck
TurretTool /Turret post typeNC Turret 4 Position
Tool shank sizemm32×32
FeedX Axis travelmm350
Z Axis travelmm850/1350/2850
X Axis rapid traverseMm/min4000
Z Axis rapid traverseMm/min4000
TailstockTailstock quill diametermm100
Tailstock quill diametermmMT5
Tailstock quill travelmm250mm
MotorSpindle Motor powerkw11
Coolant pump motor powerkw0.125/0.37
sizeWidth  Heightmm1800×1850
Lengthmm3300/3800/5300
WeightNet weightT4.5/5/6
