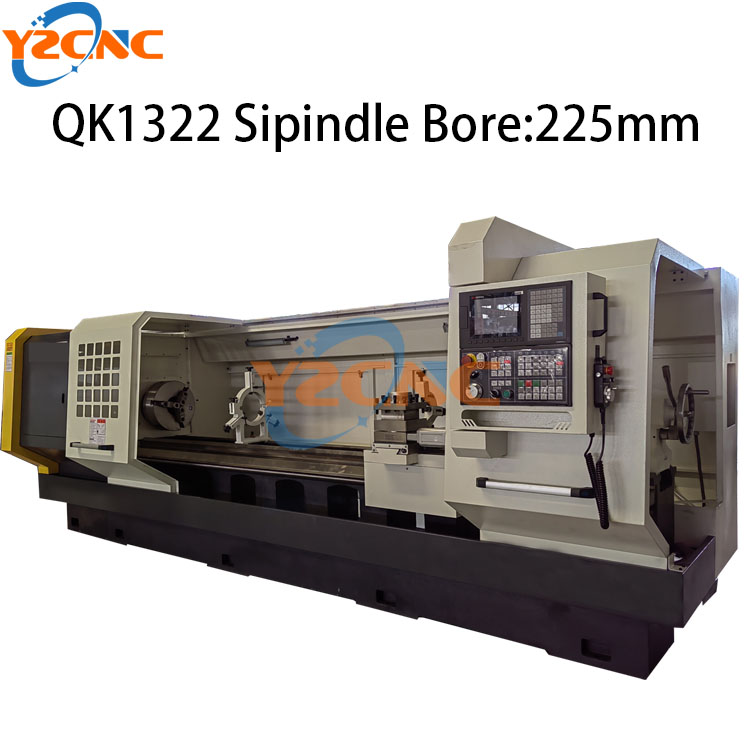

QK1322 Cnc Pipe Thread Cnc Lathe Machine

QK1322 Cnc Pipe Thread Cnc Lathe Machine

Spindle Bore: 200mm

Controller: GSK980TC3/Siemens808D/Siemens828/Fanuc

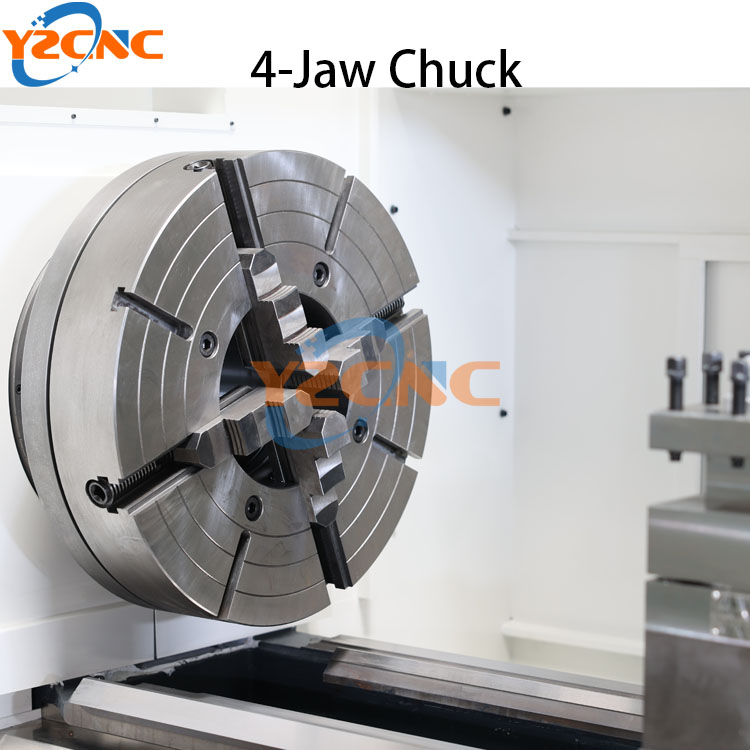

Double Chuck



Contact Form Demo (#3)

QK1322 Cnc Pipe Thread Cnc Lathe Machine is mainly designed for processing internal and external Metal pipe threads including metric, inch, module, DP, and taper threads, as well as having all the common functions of a normal cnc lathe such as processing the inner bore and end face of shafts and disks. this series lathe machine is widely used in industries including petroleum exploitation, minerals mining, chemical piping, and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipes, drilling rods, thread coupling, and so on.

threading machine1. QK1322 Big spindle bore and double chuck to ensure the process of big diameter pipe

2. QK1322 One-piece bed adopts high-strength iron to ensure rigidity and precision

3. Ultrasonic frequency quenched guide-ways ensure good wear-resistance

4. Carriage and guideway contact surface use Turcite B to maintain accuracy.

QK1322 Cnc Pipe Thread Cnc Lathe Machine Specification


CapacitySwing over bedmm630
 Swing over cross slidemm340
 Distance between centersmm1000/1500/3000
 Processing thread dia.rangemm50-220
 Guideway widthmm400/550
SpindleSpindle boremm225mm
 Spindle speed type 2 Steps
 Spindle speed rangerpm30-800


mmK11-500 three jaw chuck
TurretTool /Turret post type NC Turret 4 Position
 Tool shank sizemm32×32
FeedX Axis travelmm350
 Z Axis travelmm850/1350/2850
 X Axis rapid traverseMm/min4000
 Z Axis rapid traverseMm/min4000
TailstockTailstock quill diametermm100
 tailstock quill diametermmMT5
 Tailstock quill travelmm250mm
MotorSpindle Motor powerkw11
 Coolant pump motor powerkw0.125/0.37
sizeWidth  Heightmm1800×1850
WeightNet weightT4.7/5.2/6.2
