VMC850 Cnc Machining center

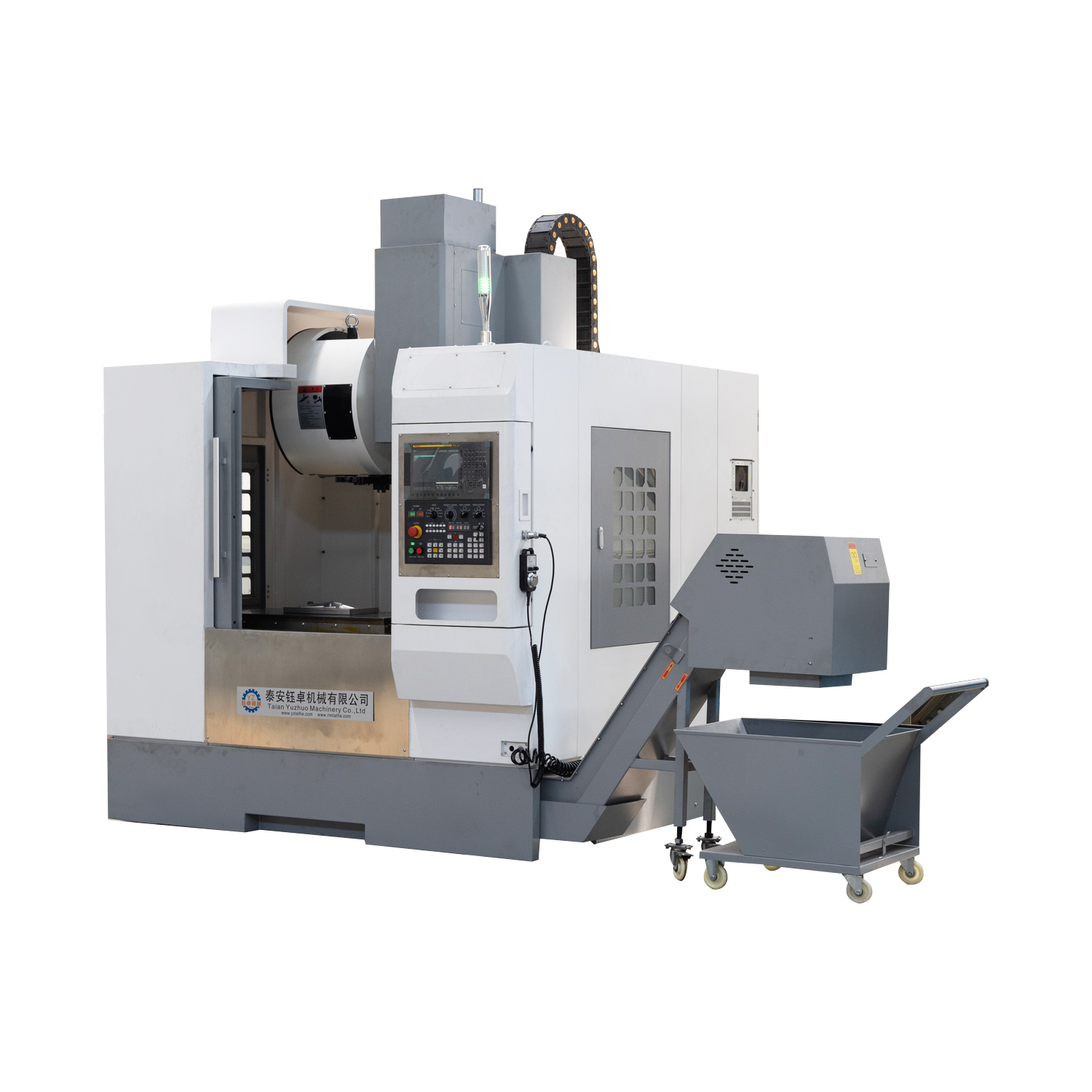

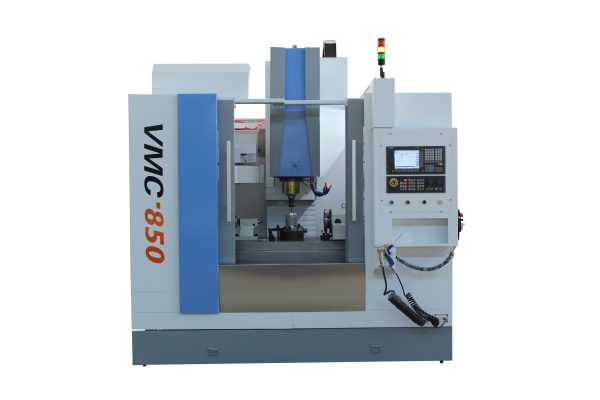

VMC850 CNC Machining center
1.Table size :1000 X500
2. 3-Axis: X: 800MM Y:500MM Z:500MM
3.Spindle speed:8000rmp
VMC855
1.Table size :1000 X550
2.3-Axis: X: 800MM Y:550MM Z:500MM
3.Spindle5 CNC Machining center speed:8000rmp
CNC Machining Center product configuration
1. CNC system: optional GSK218M / Siemens 808 / Fanuc / Mitsubishi M80 /Syntec 22MA
2. Tool magazine: optional funnel-type tool magazine with 20 tools Arm type tool magazine with24
3. Spindle speed: 8000/10000/12000rpm
4. Turntable: four-axis five-axis
5. Coolant through spindle
6. Spindle oil cooling
7. Chip conveyor
VMC850 and VMC855 machining centers main difference
1. larger workbench
2. Increased travel for X Y Z
3. Oversized ball screw and guideway
4. Increased CNC machine weight
Cnc Machining Center 5-Axis and 4-Axis
Cnc machining center Specification
| ITEM | UNIT | VMC850 | VMC855 | ||
| Table | Size | MM | 1000 X500 | 1000 X550 | |
| Max load | KGS | 600 | 700 | ||
| T-Slot size | MM | 18 X 5 | 18 X 5 | ||
| Working area | X-axis | MM | 800 | 800 | |
| Y-axis | MM | 500 | 550 | ||
| Z-axis | MM | 500 | 500 | ||
| Spindle nose to table | MM | 100-600 | 120-620 | ||
| Spindle center to z axis guide surface | MM | 580 | 620 | ||
| spindle | Spindle taper | BT40-150 | BT40-150 | ||
| Spindle speed | RPM | 8000 | 8000 | ||
| spindle motor power | KW | 7.5 | 7.5 | ||
| Feed | Fast feed | X | M/MIN | 24 | 24 |
| Y | M/MIN | 24 | 24 | ||
| Z | M/MIN | 20 | 20 | ||
| cutting speed | MM/MIN | 1-1000 | 1-1000 | ||
| feed motor power | X | N | 15 | 15 | |
| Y | N | 15 | 15 | ||
| Z | N | 15 | 15 | ||
| Capacity | Types tool changers | Funnel type tool changer/Arm type tool changer ATC | |||
| Capacity of tools | 20/24 | 20/24 | |||
| Tool change time | S | 8/2.5 | 8/2.5 | ||
| Accuracy | Position Accuracy | MM | ±0.006 | ±0.006 | |
| Repeatability | MM | 0.008 | 0.008 | ||
| Size | machine size | MM | 2400 X 2100 X 2600 | 2400 X 2100 X 2600 | |
| Packing dimension | MM | 2500X2200X 2550 | 2500X2200X 2550 | ||
| weight | Kgs | 4200 | 5000 | ||
VMC Cnc Machining Center

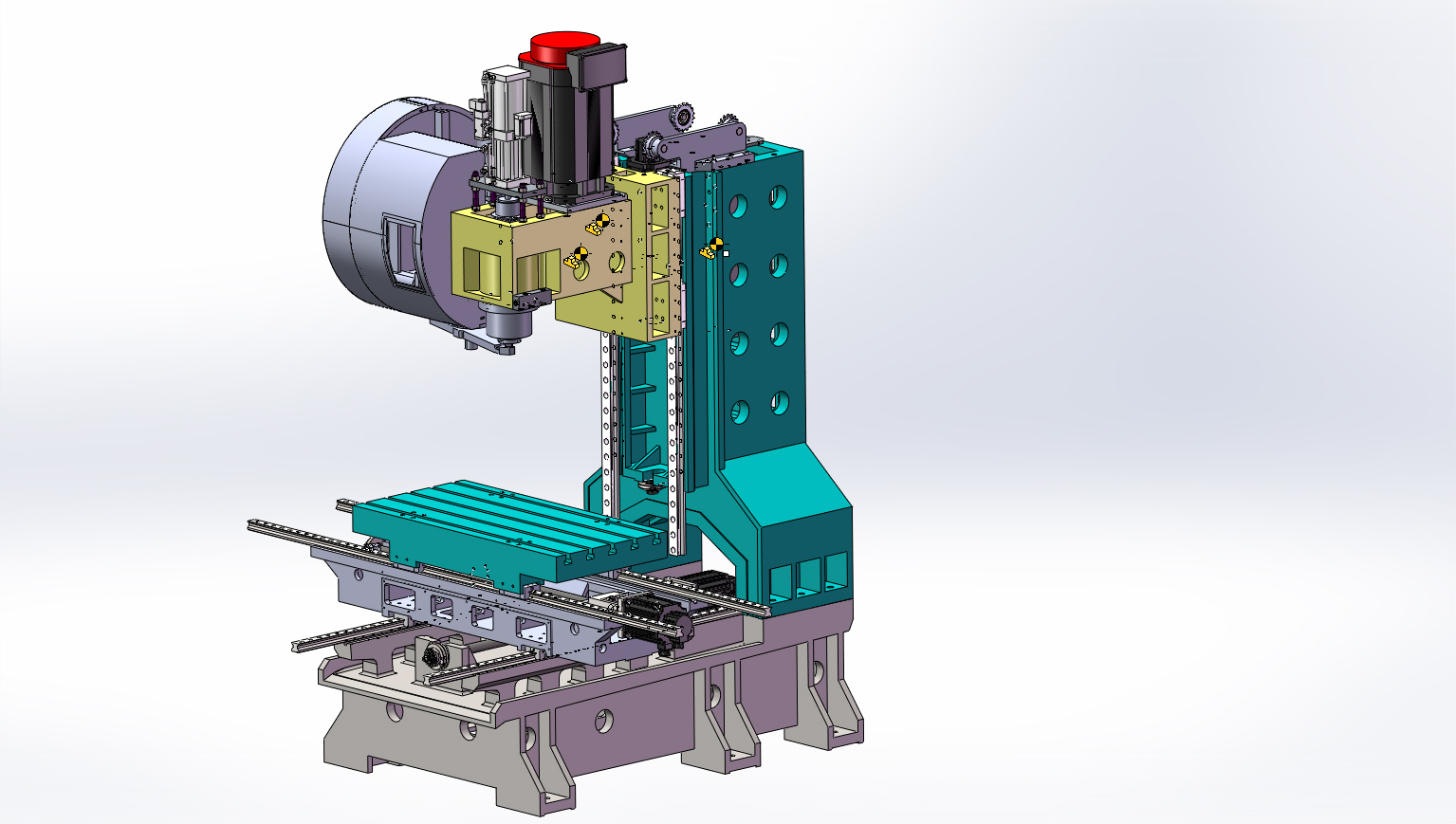

1. The overall framework is made of high-grade casting iron with twice heat treatments and magnetic resonance. Natural aging relieves internal stress to ensure the lasting best rigidity and high precision.
2. The bed base assembling with the long-span coumn design increases the contact area between the column and the base.
3 .axis assembled with square guide rails, increases the processing strength and stock resistance significantly. The epoxy resin stick processing and artificial scraping grinding ensure the precision and stability
4. The spindle is assembled with high-power servo motor driving, high torque, and wide range output.
5.The major outsourced components are all provided by foreign
6. PRECISION VERTICAL MACHINING CENTER

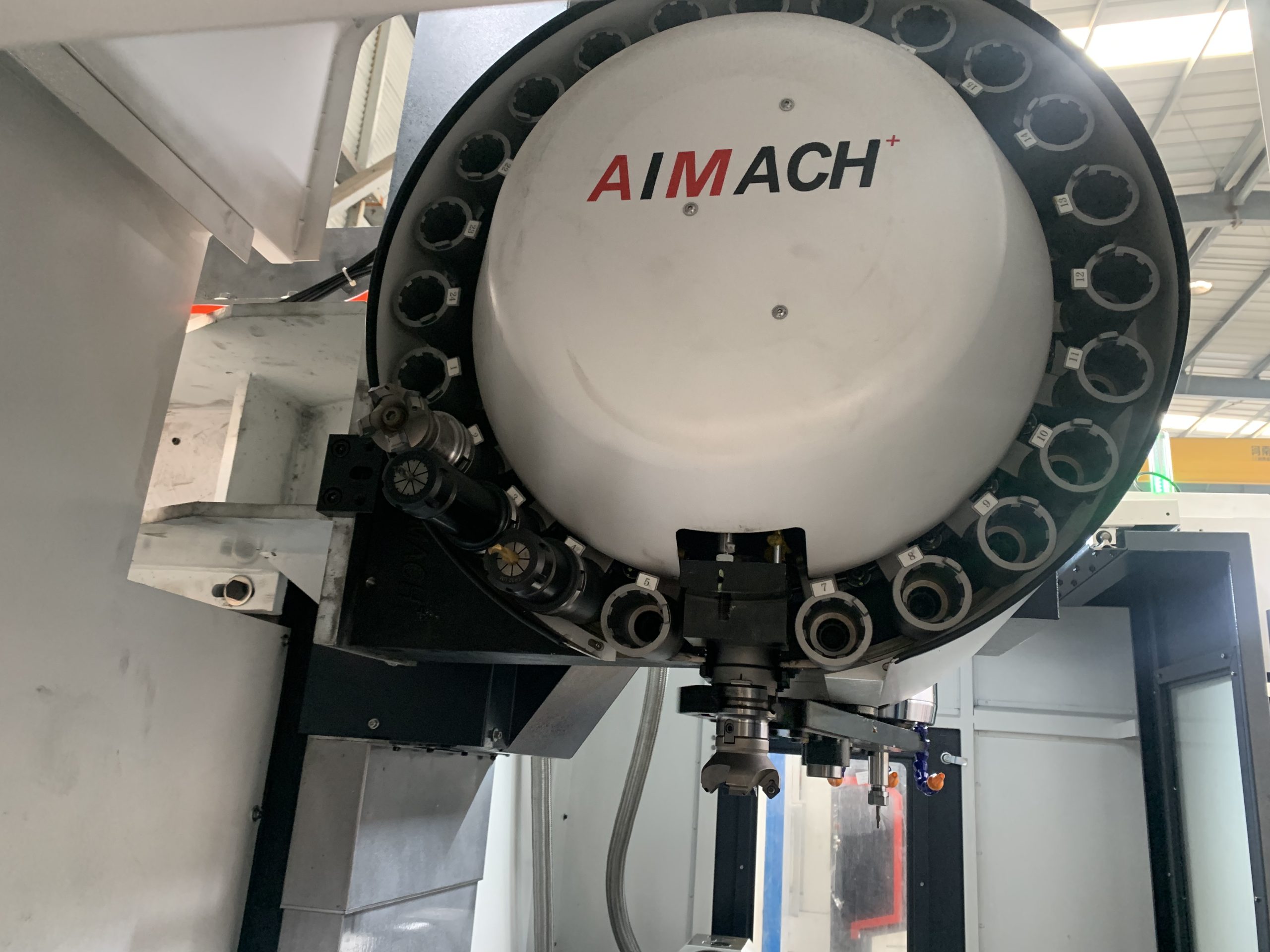

7.Using ATC24 manipulator automatic tool change magazine,quick changing tools time reaches 1.3seconds
8. Using the original servo motor on 3 axes. Rapid feed speed can reach 48m/min. The motor base contact surface under artificial scraping grinding increases contact in the area and the lasting stability of the machine.
9. Using original Taiwan HIWIN OR PMI c3 class precision ball screw. Specialized Japanese Nsk bearing with DB fitting method provides strong torque on machine processing. The ball screw proper pre-stretching treatment after installation effectively decreases thermal stretch to guarantee feed position accuracy and machining stability
10. Spindle head designed with double enclosed structure and increasing slider assembling base distance, effectively guaranteeing the machine processing strength.
