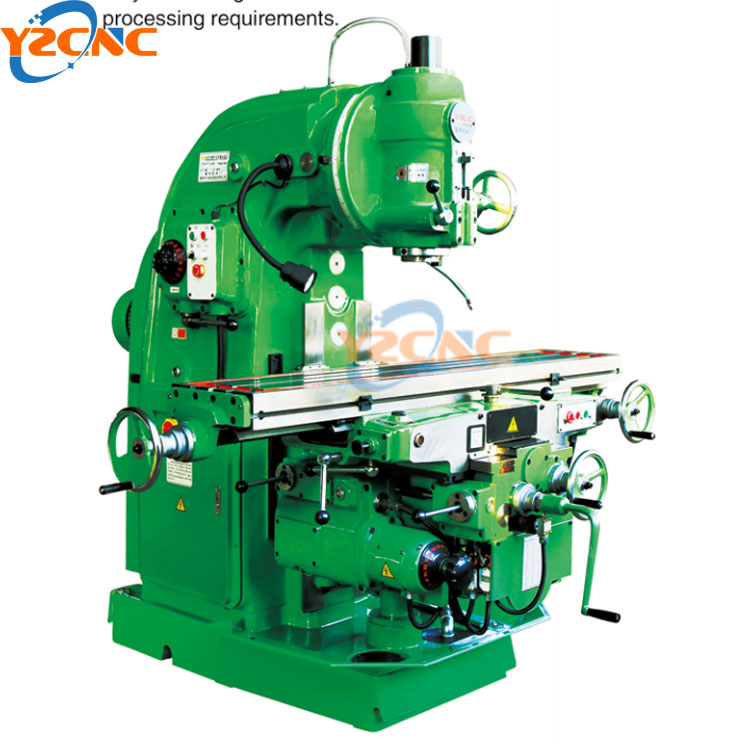

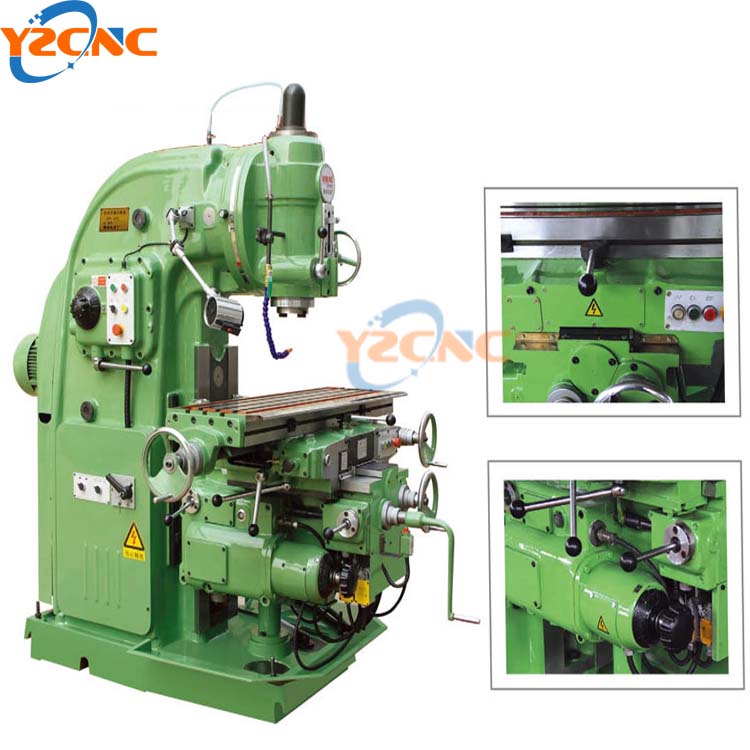

X5032 Universal milling machine

X5032 vertical lifting table milling machine has the characteristics of strong rigidity, wide range of feed speed change, and can bear heavy load chips. It can install various cylindrical milling cutters, angle milling cutters and end milling cutters directly or through accessories to mill planes, inclined surfaces, grooves, holes, etc.


Contact Form Demo (#3)

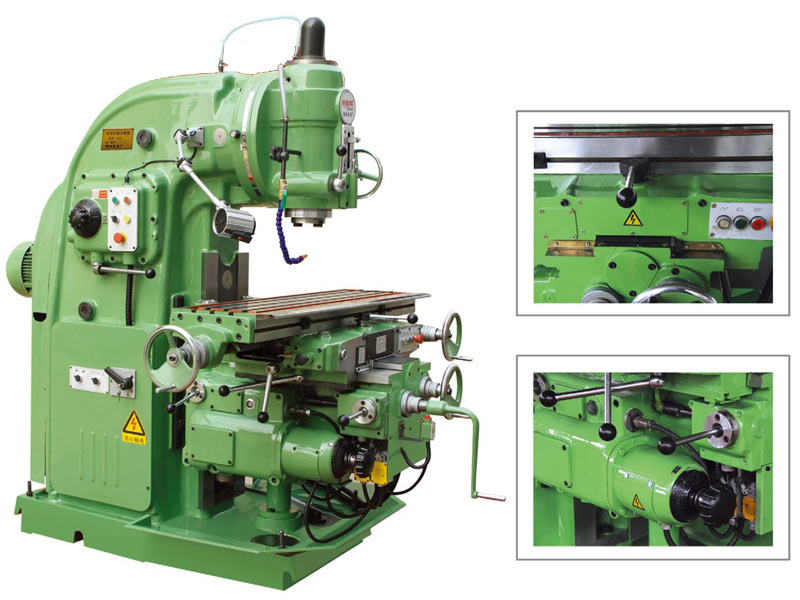

milling machineThe X5032 universal milling machine is a versatile and widely used machine tool that is capable of performing a range of milling operations. In this article, we will discuss the features and applications of this machine tool in detail.

X5032 Universal milling machine Features:

Versatility: The X5032 milling machine is a versatile machine that can be used for milling, drilling, boring, and tapping operations. It is suitable for machining a wide range of materials, including metal, plastic, and wood.

High precision: The machine is designed to achieve high precision and accuracy in machining operations. It has a rigid and stable structure that ensures stability during machining, resulting in precise and accurate cuts.

Large worktable: The X5032 machine has a large worktable that allows for the machining of large and complex parts. The table can be rotated and tilted to enable the machining of parts from different angles.

Wide speed range: The milling machine has a wide speed range that can be adjusted to suit different machining operations. This feature allows for the machining of different materials at different speeds, resulting in better surface finish and longer tool life.

Easy to use: The machine is easy to use, with a simple and intuitive control system that allows for easy operation. It is also easy to maintain and repair, with readily available spare parts.

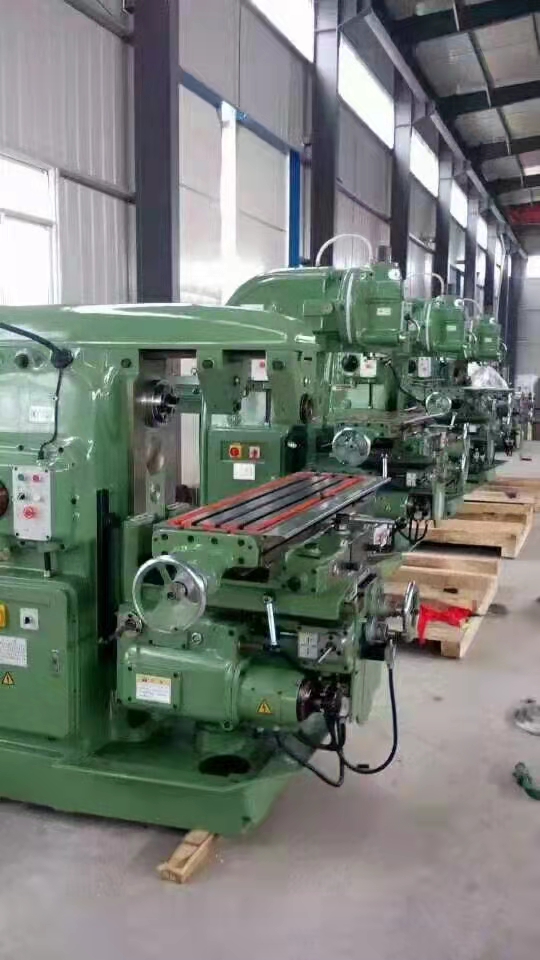

   horizontal milling machineX5032 Universal milling machine Applications:

Metalworking: The X5032 milling machine is widely used in metalworking applications, including the machining of steel, aluminum, and other metals. It is commonly used in the manufacturing of parts for the aerospace, automotive, and defense industries.

Woodworking: The machine can also be used for woodworking applications, including the machining of wooden parts for furniture, cabinets, and other wooden products.

Prototyping: The X5032 milling machine is often used in prototyping applications, where a small number of parts need to be produced quickly and accurately. It allows for the rapid development and testing of new products and designs.

Tool and die making: The machine is also used in tool and die making applications, where it is used to manufacture molds, dies, and other precision components.

the X5032 universal milling machine is a versatile and reliable machine tool that is widely used in various industries. Its features, including versatility, high precision, and ease of use, make it a popular choice for machining operations. Its applications range from metalworking to prototyping and tool and die making.

X5032 Universal milling machine Specification



Table size(length × width)mm1325×320
Number/Width/Distance of T-slotmm3/18/70
Max. load of tablekg500
Longitudinal travel (manual/auto)mm700/680
Transverse travel (manual/auto)mm255/240
Vertical travel (manual/auto)mm350/330
Cutting feed speed(X/Y/Z)mm/min23.5-1180/15-786/8-394
Rapid feed speed(X/Y/Z)mm/min2300/1533/770
Spindle speed rangerpm30-1500
Spindle speed step(steps)18
Spindle travelmm70
Max. swivel angle of spindle ±45°
Distance between spindle nose and table surfacemm60-410
Distance between spindle and columnmm350
Spindle taper ISO50 7:24
Spindle boremmΦ29
Spindle motor powerkW7.5
Feed motor powerkW1.5
Overall dimensionmm2294×1780×2150
Machine weightkg2860
