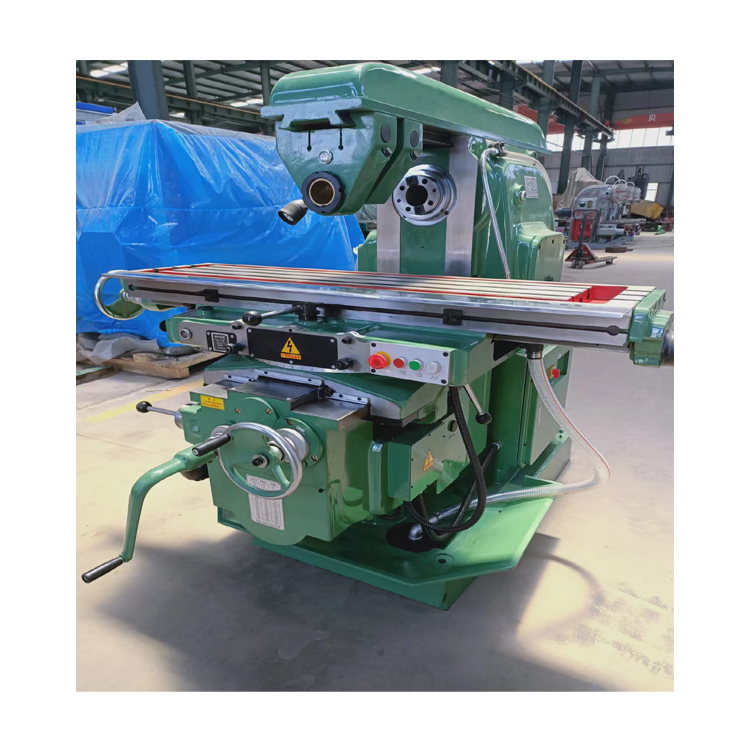

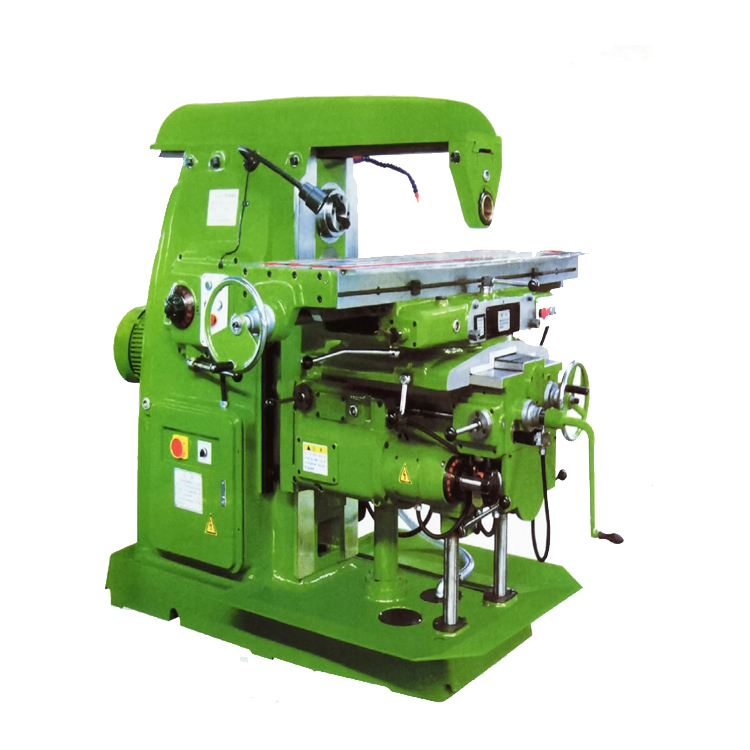

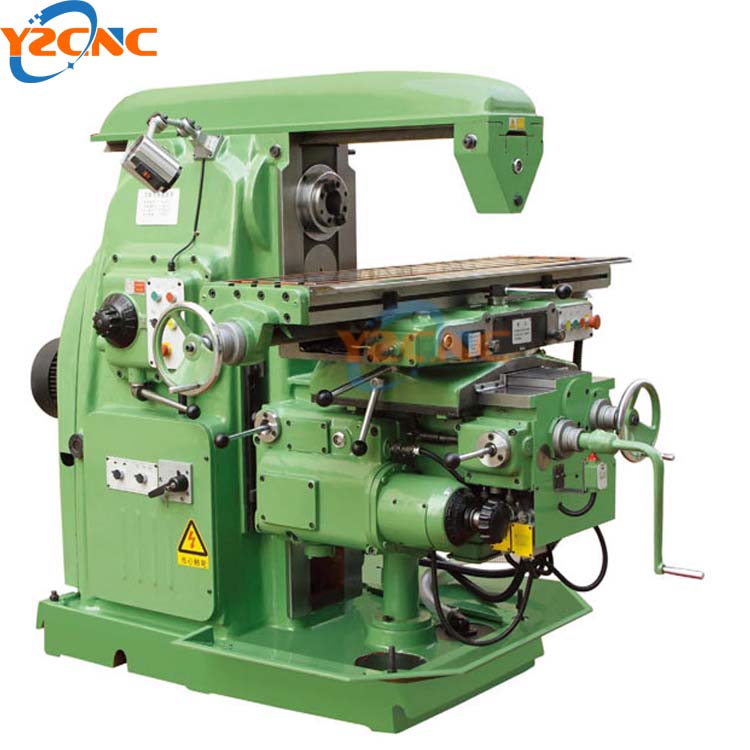

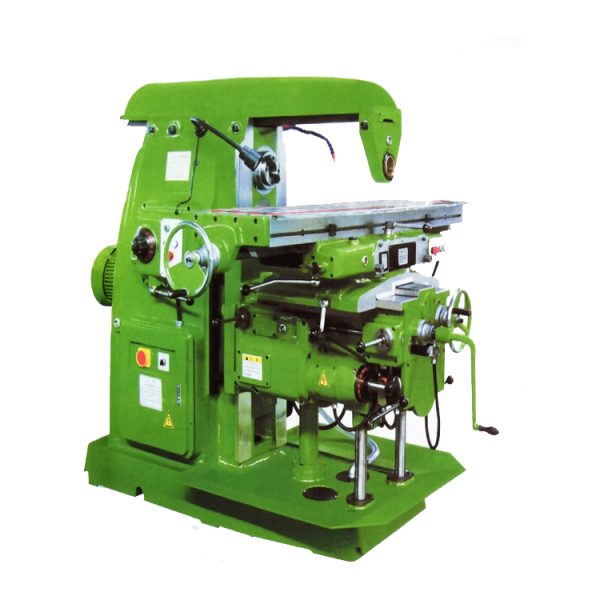

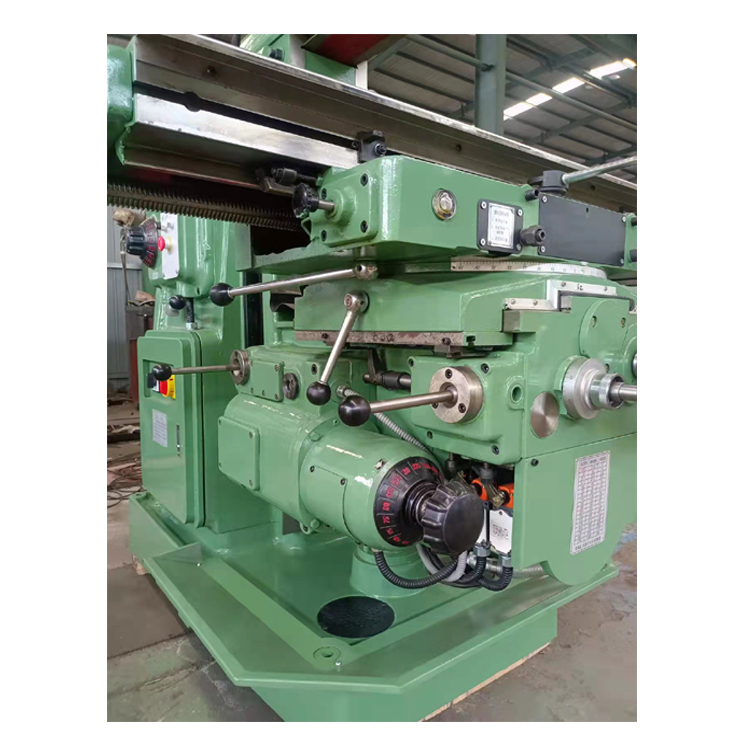

1. X6132 Horizontal Milling and Boring machine is a general-purpose machine tool, mainly suitable for mass production, single piece small batch production, machining department, and tool repair department.
2. It is suitable for milling various parts with cylindrical, disc milling cutters, angle milling cutters, forming milling cutters, and face milling cutters. This milling machine can process planes, inclined surfaces, grooves, holes, gears, etc. If you use the universal milling head, original workbench, indexing head, and other milling machine accessories, you can expand the processing range of the machine tool.
3. The workbench can rotate 45º to the left and right. When the workbench rotates around its vertical center at a certain angle and is equipped with a dividing head, it can still mill and cut helical surfaces (such as spiral grooves of drill bits, helical gears, drums, etc.)
The X6132 Horizontal Milling and Boring machine is a versatile piece of equipment used in a wide range of industries for various machining operations. X6132 Horizontal Milling and Boring machine is a powerful metal cutting horizontal universal milling machine with a lifting table.
Applications:
Specifications | Units | X6132 | X6140 |
Table size(length × width) | mm | 1325×320 | 1700×400 |
Number/Width/Distance of T-slot | mm | 3/18/70 | 3/18/80 |
Max. load of table | kg | 500 | 800 |
Longitudinal travel (manual/auto) | mm | 700/680 | 900/800 |
Transverse travel (manual/auto) | mm | 255 /240 | 315/300 |
Vertical travel (manual/auto) | mm | 320/300 | 380/360 |
Cutting feed speed(X/Y/Z) | mm/min | 23.5-1180 23.5-1180 8-394 | 19-950 19-950 6.3-317 |
Rapid feed speed(X/Y/Z) | mm/min | 2300/2300/770 | 2300/2300/770 |
Spindle speed range | rpm | 30-1500 | 30-1500 |
Spindle speed step | steps | 18 | 18 |
Max. swivel angle of the work table | ±45° | ±45° | |
Distance between spindle axis and table surface | mm | 30-350 | 30-410 |
Spindle taper | ISO50 7:24 | ISO50 7:24 | |
Spindle bore | mm | Φ29 | |
Spindle motor power | kW | 7.5 | 11 |
Feed motor power | kW | 1.5 | 1.5 |
Overall dimension(L×W×H) | mm | 2294×1770×1610 | 2594×2159×1770 |
Net weight | kg | 2650 | 3850 |

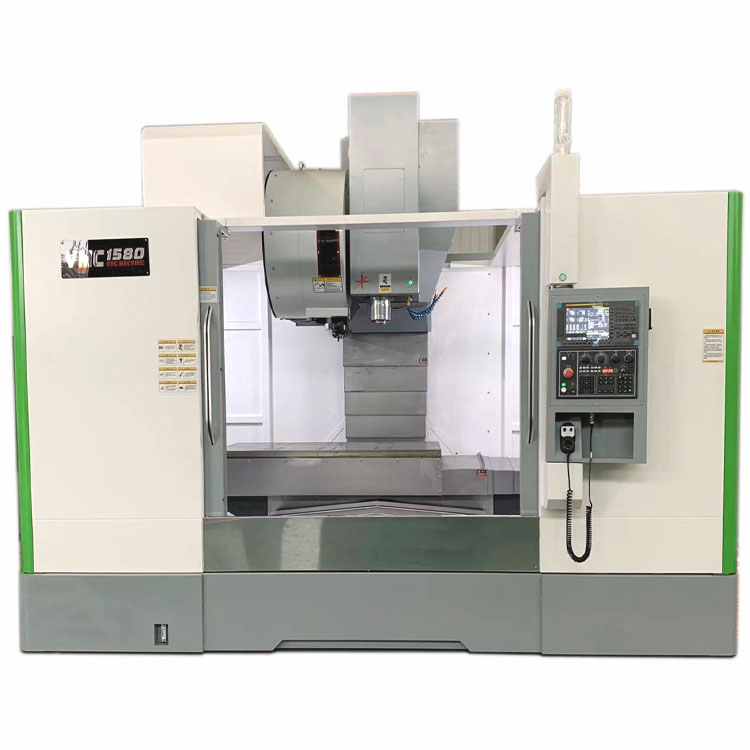

VMC1580, VMC1270 VMC1370 XH7126 XH7124 XH7136
