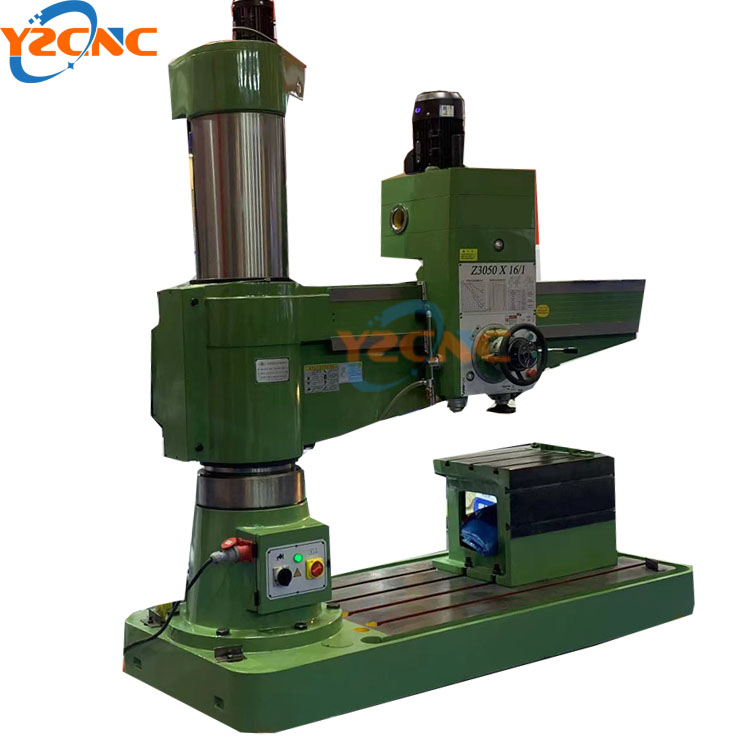

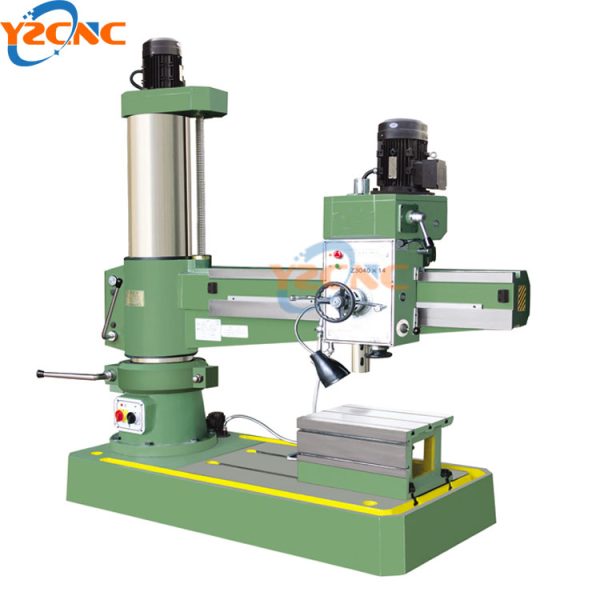

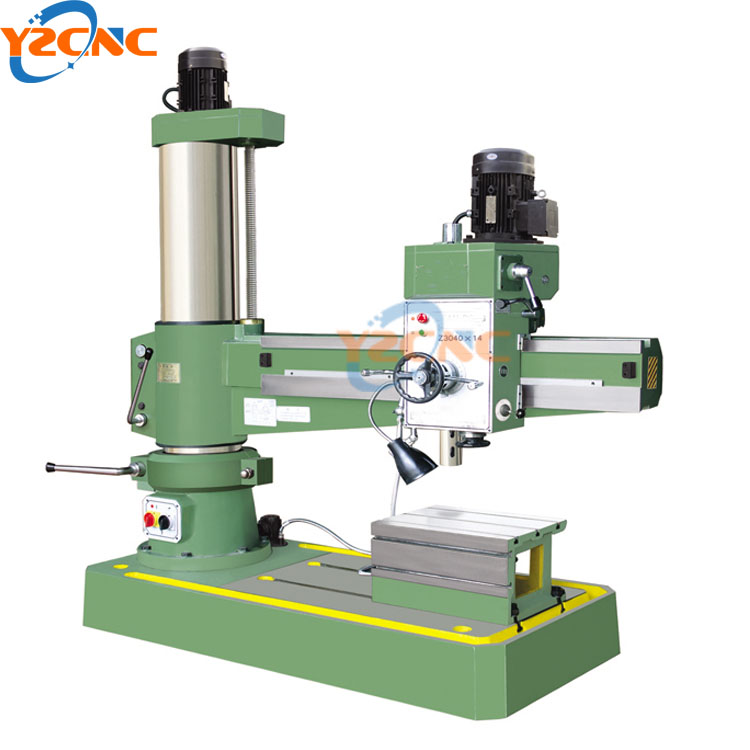

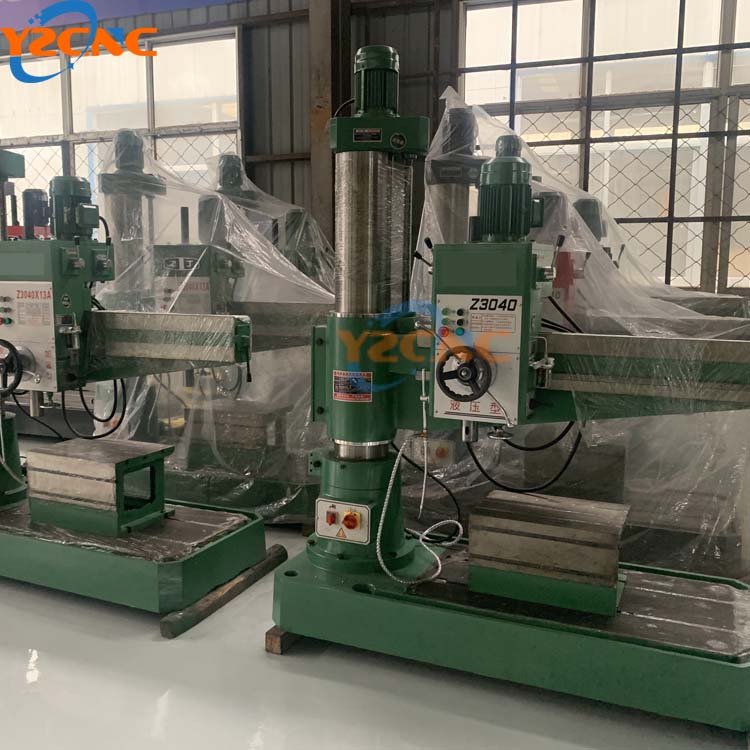

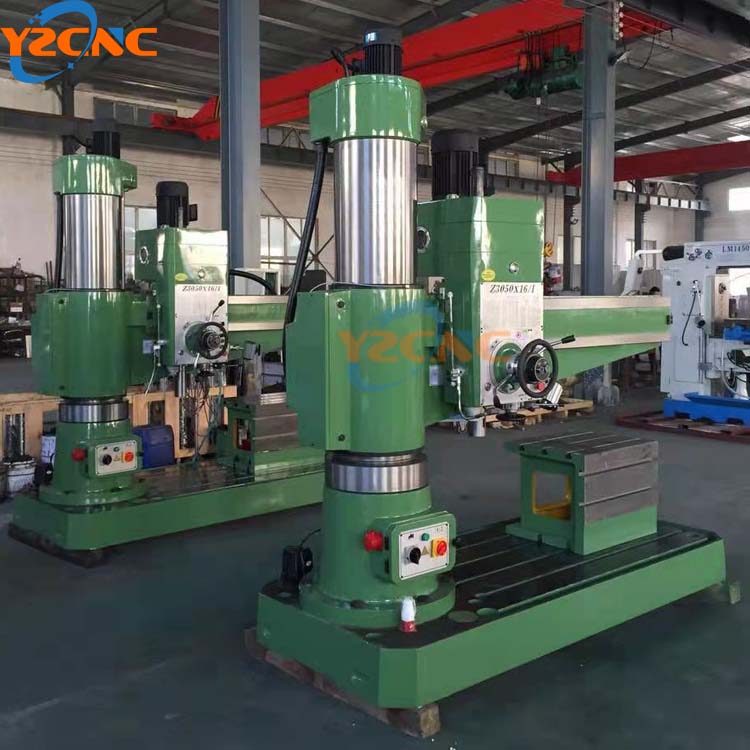

Z3040 Radial drilling machine
Z3040 Radial drilling machine Configuration features
1.Mechanical transmission
2.Hydraulic transmission
3.Mechanical speed
4.Automatic take-off and landing
5.Automatic feed
Z3040 radial drilling machine is a type of drilling machine used in manufacturing and metalworking industries. It is designed to drill holes in large workpieces, typically with a diameter of up to 50mm. The machine is named for its radial arm, which can be positioned horizontally, vertically, or at any angle in between, allowing it to drill holes at various positions on a workpiece.
The main use of radial drilling machines is to drill holes in metal parts for manufacturing purposes, such as in the fabrication of machines, tools, and equipment. These machines are widely used in the automotive, aerospace, and construction industries, among others. They are also commonly used in metalworking shops, where they are used to drill holes in a variety of materials, including steel, aluminum, brass, and copper.
One of the key advantages of radial drilling machines is their versatility. The machine can be used to drill holes at various angles and positions on a workpiece, which is not possible with other types of drilling machines. This makes it ideal for drilling holes in complex shapes and large workpieces that cannot be easily maneuvered. Another advantage of radial drilling machines is their high drilling speed, which can be adjusted to match the requirements of the workpiece.
Z3O40 Radial drilling machines also have a number of unique features that make them well-suited for certain applications. For example, some machines are equipped with automatic feed mechanisms, which allow the drill to be fed into the workpiece at a consistent rate, resulting in a more precise and accurate hole. Other machines are equipped with coolant systems, which help to prevent the drill from overheating and prolong its lifespan.
Another important feature of radial drilling machines is their size and portability. These machines are typically mounted on a base, which can be moved around the shop floor as needed. This allows the machine to be used in different locations, depending on the specific requirements of the job
Z3040 Radial drilling machine specification
| SPECIFICATIONS | Z3040 |
| Max. drilling dia(mm) | 40 |
| Spindle center to column generating distance | 370-1370 |
| Distance headstock horizontal movement(mm) | 1000 |
| Distance from spindle nose to table surface(mm) | 280—1210 |
| Rocker lifting distance(mm) | 680 |
| Rocker Lifting speed （m/min） | 1.32 |
| Rocker rotary angle | ±90° |
| Spindle taper | 4 |
| Range of spindle speeds(r.p.m) | 40-1896 |
| Spindle speed series | 12级 |
| Spinde feeding range(r.p.m) | 0.13—0.54 |
| Spinde feeding step | 4级 |
| Spindle travel (mm) | 260 |
| Maximum allowable torque of spindle (N.m) | 200 |
| Maximum resistance to the spindle(N) | 10000 |
| Main motor power (kw) | 3 |
| Machine weight | 2200 |
| Overall dimensions(mm) | 2053x820x2483 |
