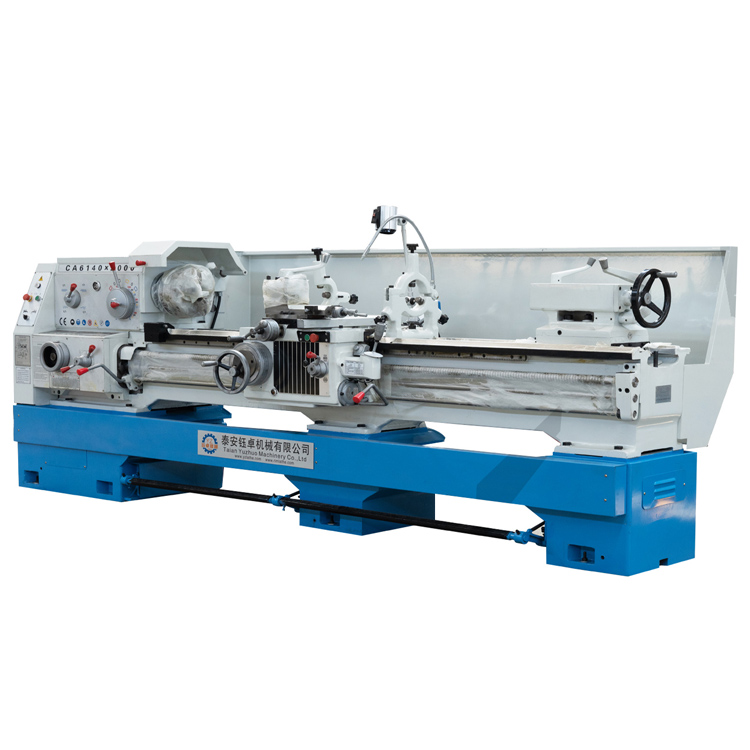

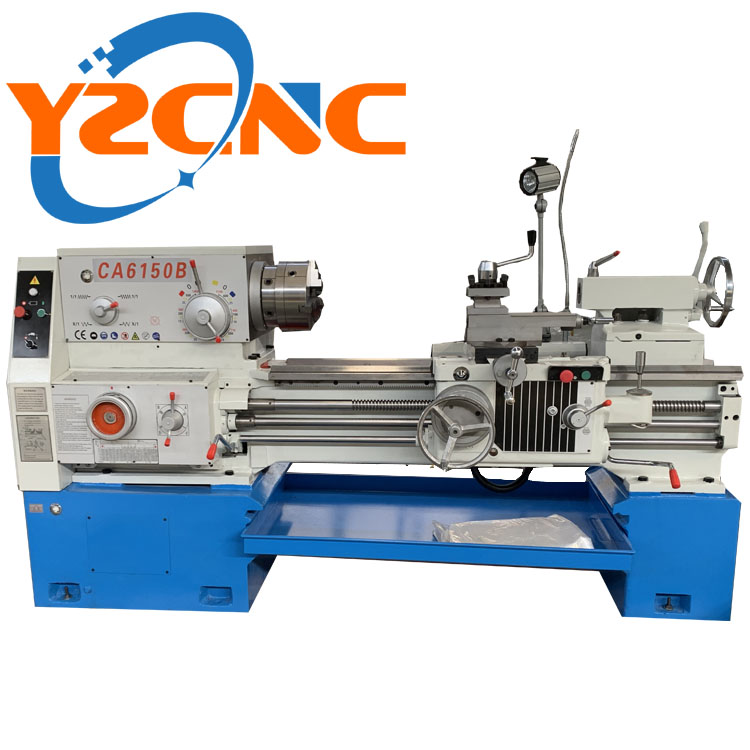

CA6250 Universal Lathe
Three-jaw Chuck or four-jaw chuck
Spindle Bore:52/80/105
Certification: CE/SGS
Type: Horizontal Lathe or Vertical Lathe
Warranty: 18 months
Voltage: As customers’ requirement (380V/400V/220V)
Color: As customers’ requirement
Brand Name:YZCNC
Universal Lathe is a type of lathe machine that is designed to handle a wide range of machining operations. It is a versatile machine that can perform various functions such as turning, drilling, boring, threading, and facing, among others. The machine is typically used in metalworking and is capable of producing precision parts with high accuracy.
CA6250 Universal Lathe
| CA Manual lathe CA62 gap lathe | ||||||
| ITM | UNIT | CA6140 CA6240 | CA6150 CA6250 | CA6161 CA6261 | CA6166 CA6266 | CA6180 CA6280 |
| Max.swing over bed | mm | 400 | 500 | 610 | 660 | 800 |
| Max.swing over carriage | mm | 210 | 300 | 370 | 400 | 540 |
| Max.swing in gap | mm | 630 | 720 | 830 | 880 | 1020 |
| Max.swing length | mm | 210 | 210 | 210 | 210 | 210 |
| Effective gap length | mm | 750/1000/1500/2000/3000/4000 | ||||
| Width of lathe bed | mm | 400 | ||||
| Section of turning tool | mm | 25*25 | ||||
| Spindle speed | rpm | 16-1400 (24steps) | ||||
| Spindle bore | mm | 52/80/105 | ||||
| Spindle nose | 52bore: ISO(GB)C6 (80/105 bore:D8) | |||||
| Spindle taper | 52Bore:No.6 MT6 ,80Bore: 1:20 105Bore: 1:20 | |||||
| No.of feed | 64kinds | |||||
| Range of metric threads | mm | 1-192mm 44 kinds | ||||
| Range of inch threads | tpi | 1-24tpi 21kinds | ||||
| Range of module threads | 0.25-48module 39kinds | |||||
| Range of diametral threads | DP | 1-96DP 37kinds | ||||
| Max.tailstock travel | mm | 150mm | ||||
| Tailstock Diameter | mm | 75mm | ||||
| Taper of tailstock hole | MT5 | |||||
| Main motor | kw | 7.5 10HP | ||||
The Universal Lathe has a bed that supports the workpiece and allows it to rotate while being machined by the cutting tool. The cutting tool is mounted on a tool post that can be moved along the length of the bed to adjust the depth of cut. The machine also has a tailstock that provides support for the other end of the workpiece and can be used to hold tools for drilling or tapping operations.
One of the key features of the Universal Lathe is its ability to change the speed of the spindle, which is the rotating component that holds the workpiece. This allows the machine to work with a wide range of materials, from soft metals like aluminum to harder materials like steel. The machine may also have additional attachments, such as a milling attachment, that can further expand its capabilities.
Overall, the Universal Lathe is a highly versatile machine that is capable of performing a wide range of machining operations, making it a valuable tool for metalworking shops and manufacturing facilities.
