ITM | UNIT | WRC22Synetc WRC22HMI | WRC28Syntec WRC28HMI | WRC32 Syntec WRC32VHMI | WRC32H Syntec WRC32HMI | |
Machine processing capacity | Max. swing over bed | Mm | 700 | 770 | 870 | 870 |
X/Z axis Travel | mm | 315/500 | 390/750 | 450/550 | 450/750 | |
X/Z axis feed | Mm/min | 4000/8000 | 4000/8000 | 5000/10000 | 5000/10000 | |
Wheel work range | holding diameter | inc | 22 | 28 | 32 | 32 |
Wheel height range | mm | 80-350 | 80-500 | 80-500 | 80-500 | |
Chuck | Chuck size | mm | 250 | 320 | 320 | 320 |
Number of chuck jaws | 3/4/6 | 3/4/6 | 3/4/6 | 3/4/6 | ||
Spindle speed | Lathe speed | Rpm/min | 100-1500 | 100-1500 | 100-1500 | 100-1500 |
Cut Wheel Work Speed | 300-800 | 300-800 | 300-800 | 300-800 | ||

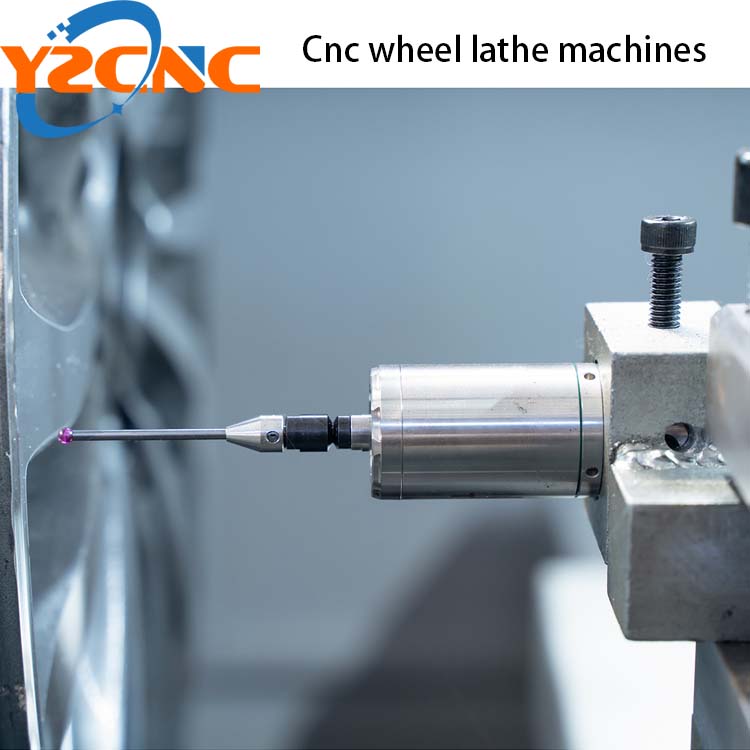

Detection tools | TP300 Probe | |||||
Guide rail form | Hard rail | Hard rail | Linear guideway | Linear guideway | ||
Lathe structure | Horizontal | Horizontal | vertical | Horizontal | ||

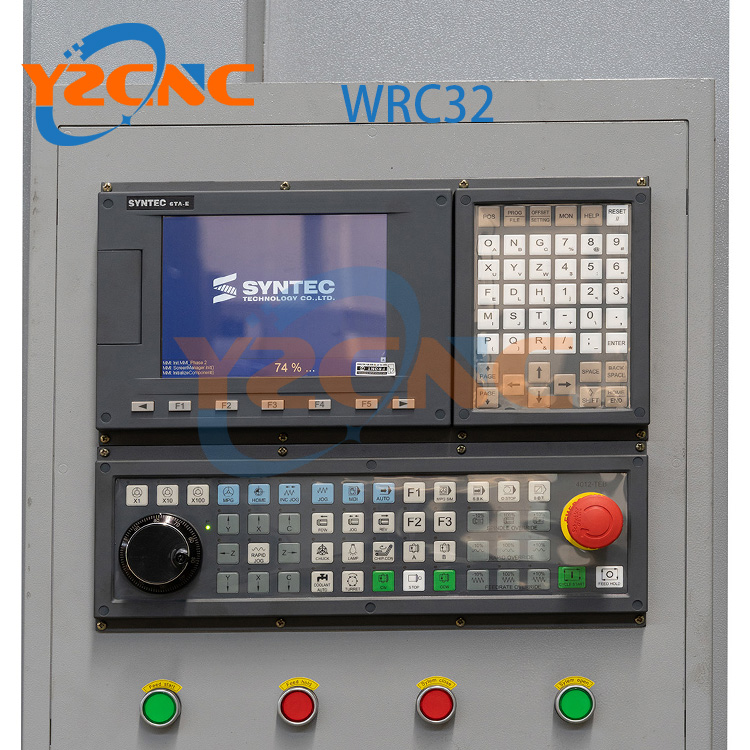

system | 6Ta-E / YZCNC(Automatic programming,touch screen opetation 17 screen lcd display) | |||||
tool carrier | Number | 4 | 4 | 4 | 4 | |
accuracy | Positioning accuracy | Mm | 0.01 | 0.01 | 0.01 | 0.01 |
Repeatability Positioning accuracy | mm | 0.005 | 0.005 | 0.005 | 0.005 | |
Tool carrier Repeatability Positioning accuracy | mm | ±0.07 | ±0.07 | ±0.07 | ±0.07 | |
Motor power | Main motor | kw | 4 | 5.5 | 5.5 | 5.5 |
X Z Feed Torgue | N/M | 6/10 | 6/10 | 6/10 | 6/10 | |
Cooling | Water cooling/air cooling/high pressure spray cooling | |||||
Voltage | Single 220v 3 phase 220v 3 phase 380V | |||||
Machine size | mm | 1950/1360/1600 | 2100/1500/1800 | 1700/1500/2250 | 2500/1850/1800 | |
Machine weight | T | 1.0t | 2.8t | 1.6t | 1.8t |
