1.Max.wheel dia:22/28/32inch

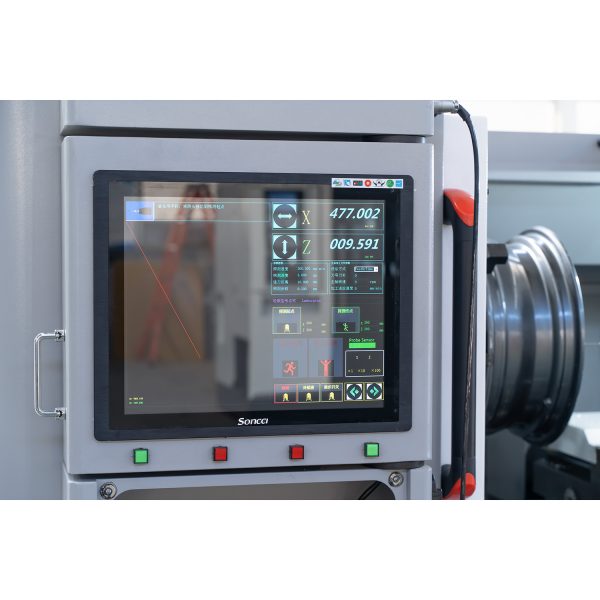

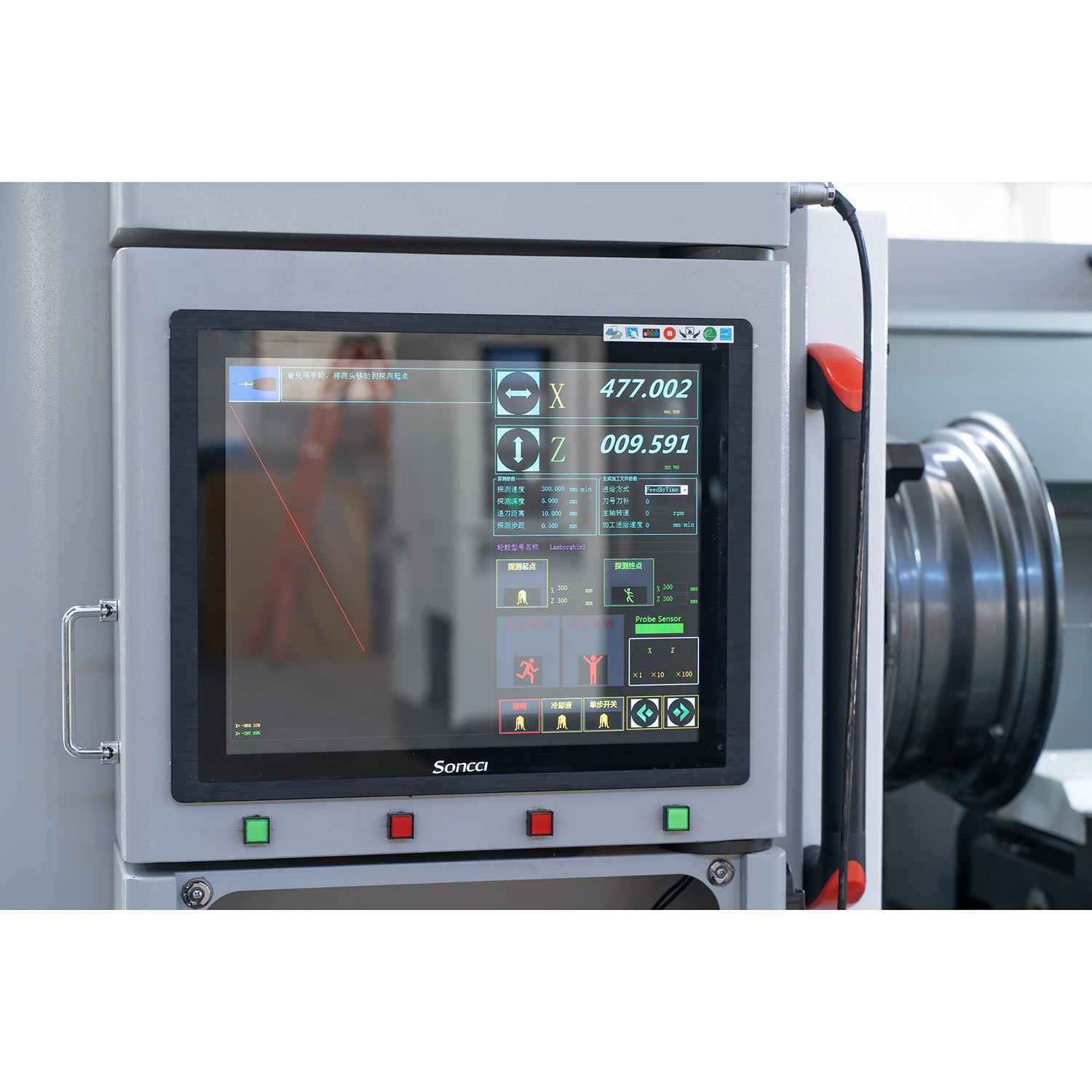

2.System: syntec /Automatic programming,touch screen opetation 17寸screen lcd display
3Lathe structure: Vertical /Horizontal
4.Voltage:Single 220v /3 phase 220v /3 phase 380V
5.Free accessories: Detection tools TP300 Probe/ Wheel clamping tooling/Wheel diamond cutter

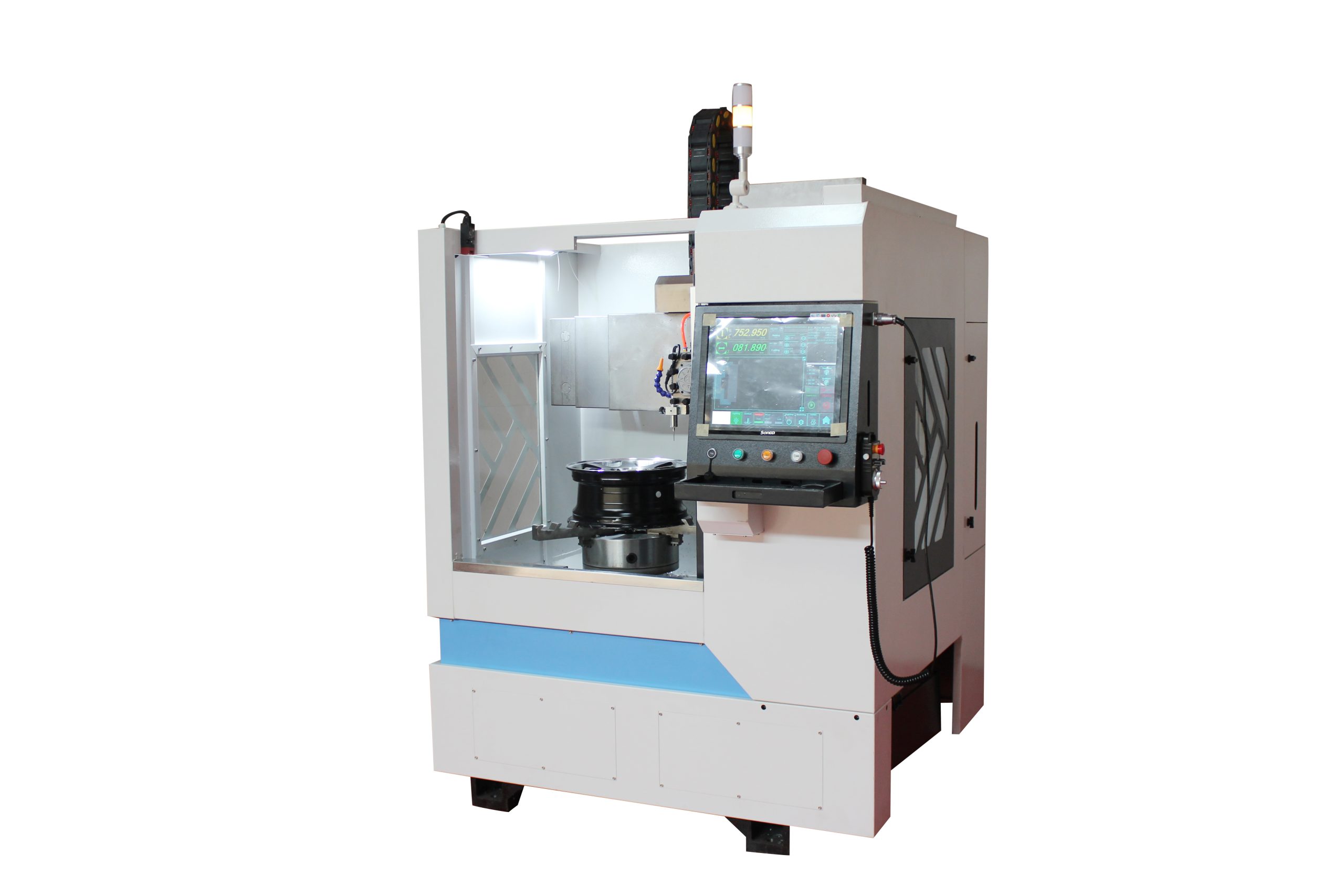

WRC32VM Vertical Wheel repair cnc lathe machine is a professional equipment developed by our company according to market development, user needs, and feedback, which is specially designed for wheel refurbishment, modification, and color change. The company has more than 25 years of experience in the production of CNC machine tools. Product quality is trustworthy. At present, there are two main types of machine equipment: vertical and horizontal. The model can be selected according to the size of the processing wheel. The largest wheel can reach 32 inches.
ITM | UNIT | WRC22H | WRC28H | WRC32VM | WRC32H | |
Machine processingcapacity max | Max. swing over bed | Mm | 700 | 770 | 870 | 870 |
X/Z axis Travel | mm | 315/500 | 390/750 | 450/550 | 450/750 | |
X/Z axis feed | Mm/min | 4000/8000 | 4000/8000 | 5000/10000 | 5000/10000 | |
Wheel work range holding | holding diameter | inc | 22 | 28 | 32 | 32 |
Wheel height range | mm | 80-350 | 80-500 | 80-500 | 80-500 | |

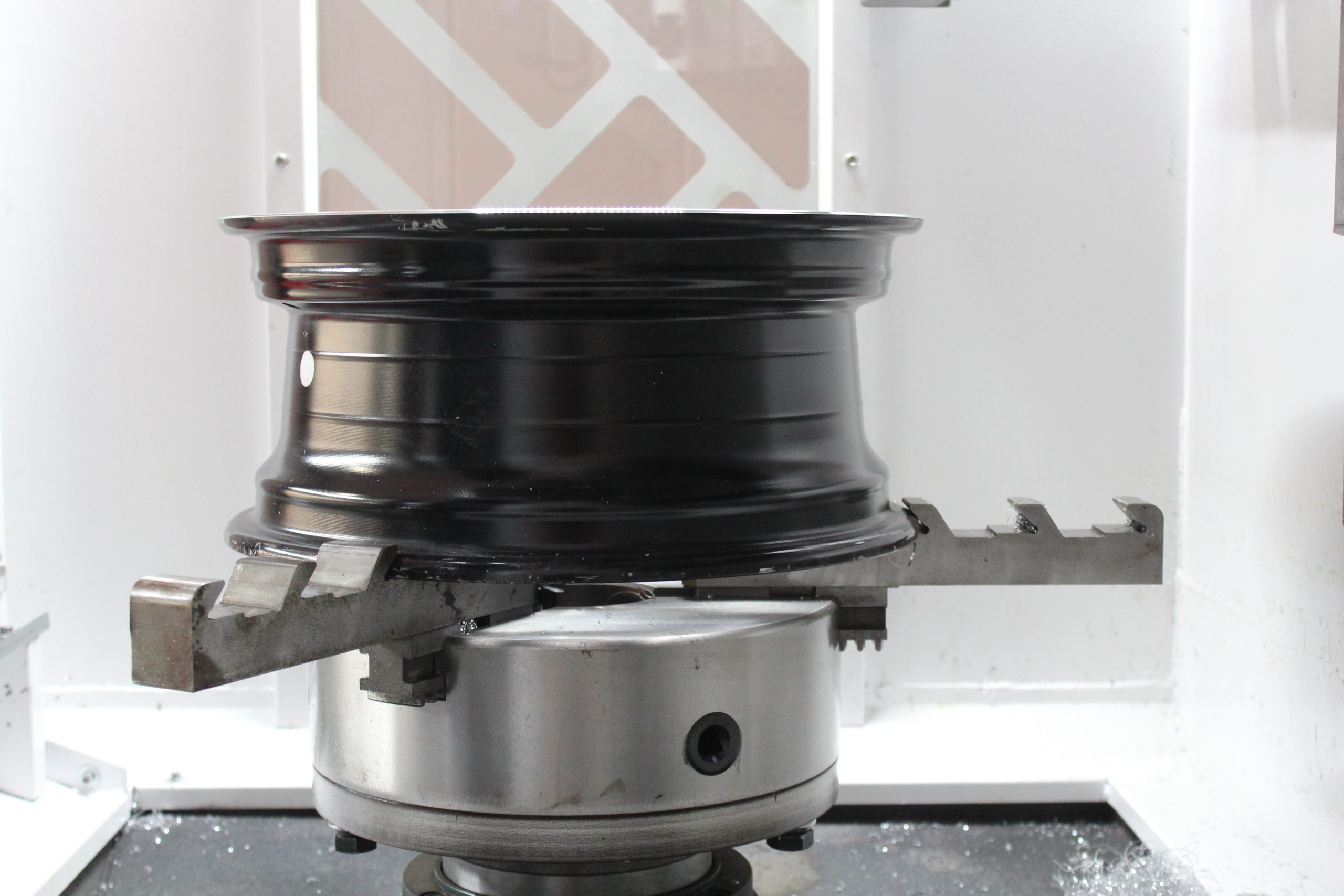

Chuck | Chuck size | mm | 250 | 320 | 320 | 320 |
Number of chuck jaws | 3/4/6 | 3/4/6 | 3/4/6 | 3/4/6 | ||
Spindle speed | Lathe speed | Rpm/min | 100-1500 | 100-1500 | 100-1500 | 100-1500 |
Cut Wheel Work Speed | 300-800 | 300-800 | 300-800 | 300-800 | ||

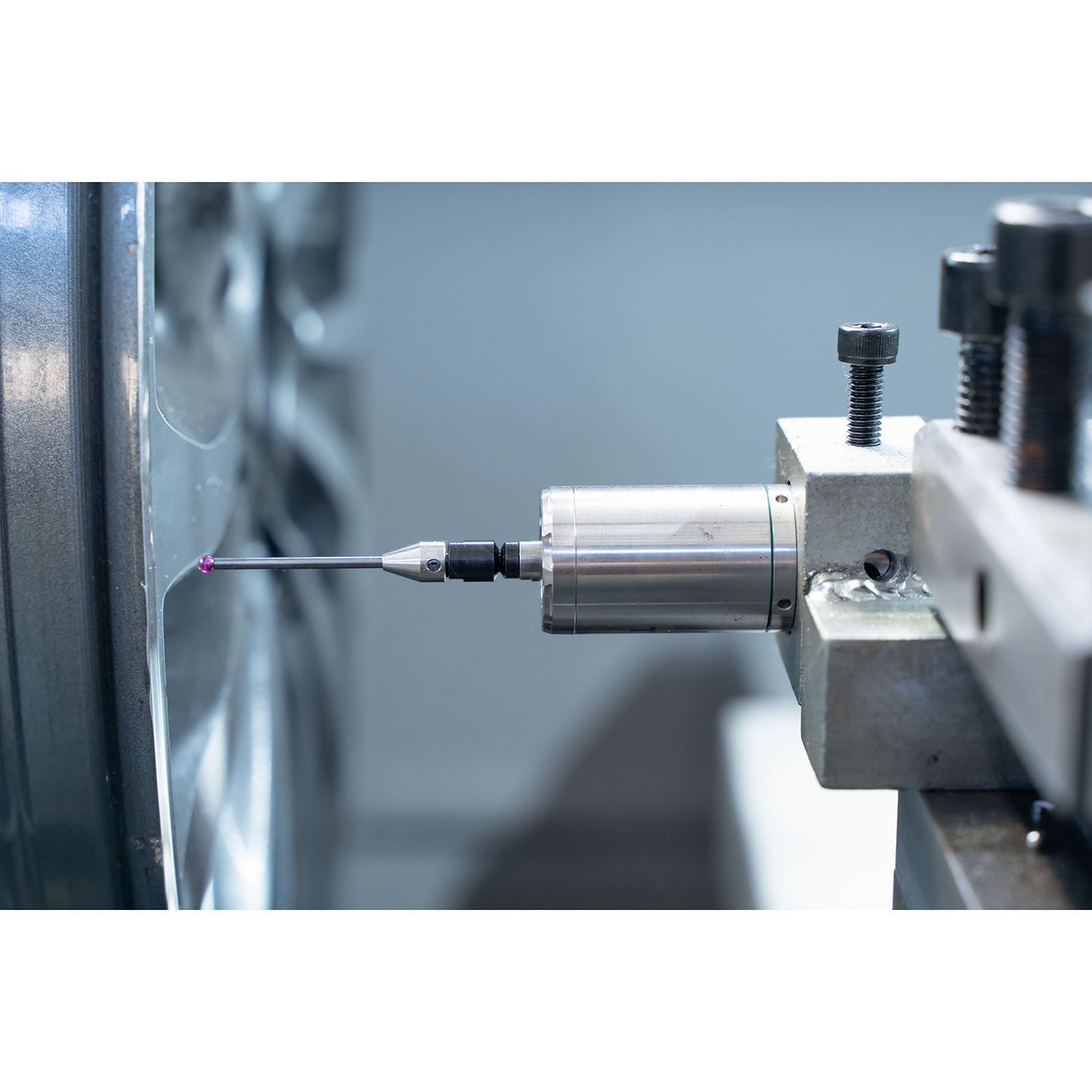

Detection tools | TP30 Probe | |||||
Guide rail form | Hard rail | Hard rail | Linear guideway | Linear guideway | ||
Lathe structure | Horizontal | Horizontal | vertical | Horizontal | ||
system | 6Ta-E / YZCNC(Automatic programming,touch screen opetation 17 inch tool | |||||
tool carrier | Number | 4 | 4 | 4 | 4 | |
accuracy | Positioning accuracy | Mm | 0.01 | 0.01 | 0.01 | 0.01 |
Repeatability Positioning accuracy | mm | 0.005 | 0.005 | 0.005 | 0.005 | |
Tool carrier Repeatability Positioning accuracy | mm | ±0.07 | ±0.07 | ±0.07 | ±0.07 | |
Motor power | Main motor | kw | 4 | 5.5 | 5.5 | 5.5 |
X Z Feed Torgue | N/M | 6/10 | 6/10 | 6/10 | 6/10 | |
Cooling | Water cooling/air cooling/high pressure spray cooling | |||||
Voltage | Single 220v 3 phase 220v 3 phase 380V | |||||
Machine size | mm | 1950/1360/1600 | 2100/1500/1800 | 1700/1500/2250 | 2500/1850/1800 | |
Machine weight | T | 1.0t | 2.8t | 1.6t | 1.8t |
